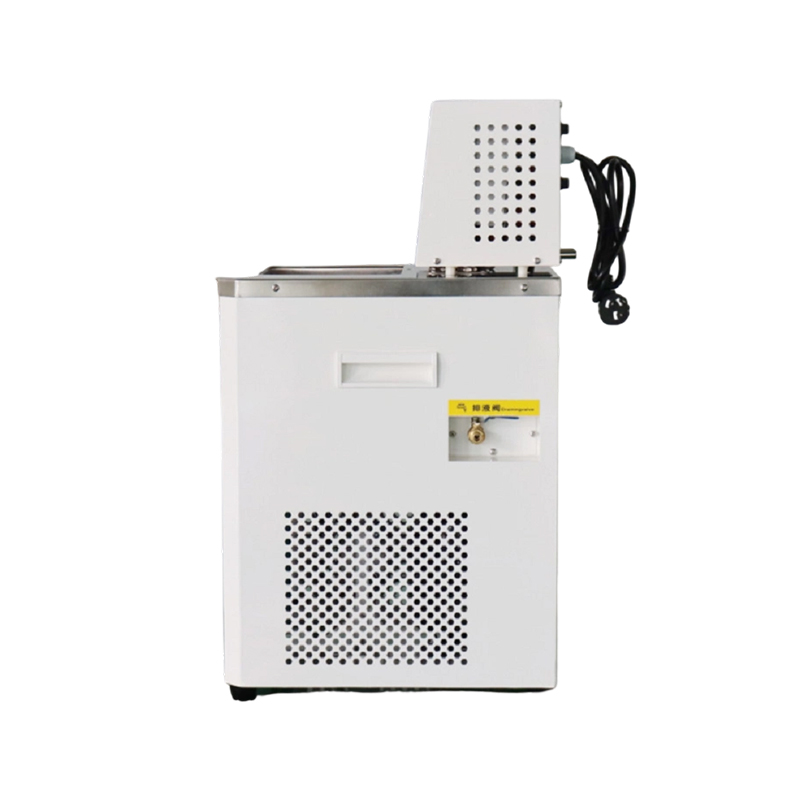

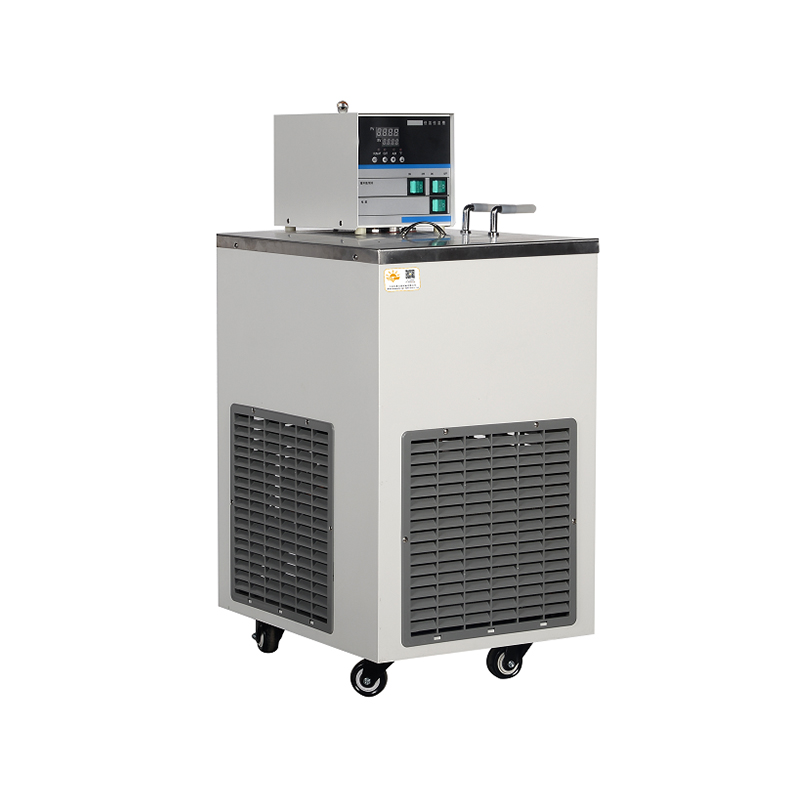

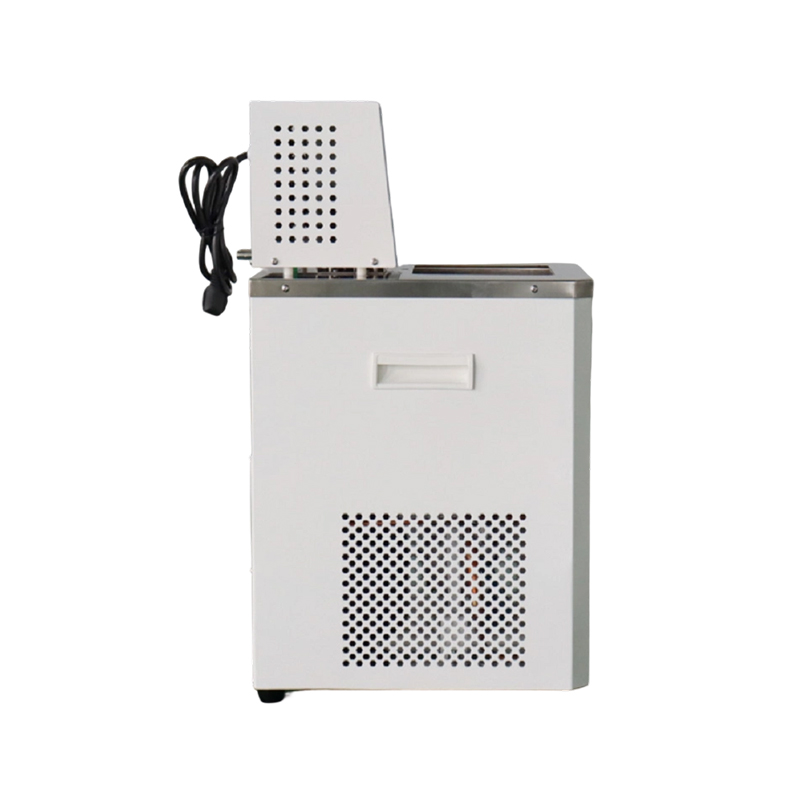

Low Temperature Constant Temperature Circulating Bath

The high-precision cryogenic temperature-controlled circulating bath combines refrigeration and heating capabilities, employing a PID precision temperature control system that delivers exceptional accuracy and stability. It provides users with a thermally uniform environment for experiments, finding extensive application in research departments across petroleum, chemical engineering, electronic instrumentation, physics, chemistry, and bioengineering, pharmaceuticals and healthcare, life sciences, light industry and food processing, physical property testing, and chemical analysis. It serves research departments, higher education institutions, enterprise quality control, and production units by providing a controlled thermal environment with uniform, constant temperatures. This enables users to conduct constant-temperature experiments or tests on samples or products. The unit may also function as a primary or auxiliary heating/cooling source.

PREV：Heating Plate
NEXT：Ultrasonic Cleaner

Product Introduction
Selection Table
Industry Standards
Safety Protection
Optional Accessories

1. Constructed from premium 304 stainless steel, offering robust corrosion resistance;

2. Large LCD display with touchscreen operation for simplified and efficient control;

3. Features a fully enclosed air-cooled compressor refrigeration system, delivering rapid cooling with superior performance and silent operation;

4. Incorporates a PID precision temperature control system, ensuring high accuracy and exceptional stability;

5. PID automatically optimises parameters for different media; manual adjustment available for specialised applications;

6. Incorporates over-temperature protection with audible alarm; configurable alarm threshold; automatic load disconnection upon over-temperature;

7. Software facilitates correction of temperature display deviation from actual readings; display accuracy to 0.001°C;

8. Users may utilise the bath for constant-temperature testing internally, or optionally configure an external circulation function to divert the bath medium externally, establishing a secondary constant-temperature field for use with other equipment;

9. Optional RS232 or RS485 communication interfaces enable data transmission for remote control (optional);

Model	DS-0506	DS-0510	DS-0515	DS-0520	DS-0530
	DS-1006	DS-1010	DS-1015	DS-1020	DS-1030
	DS-2006	DS-2010	DS-2015	DS-2020	DS-2030
	DS-3006	DS-3010	DS-3015	DS-3020	DS-3030
	DS-4006	DS-4010	DS-4015	DS-4020	DS-4030
Temperature Range	Type 0: -5 to 99.9°C Type 1: -10 to 99.99°C Type 2: -20 to 99.9°C Type 3: -30 to 99.9°C Type 4: -40 to 99.9°C
Temperature Resolution	0.1°C resolution
Temperature Fluctuation	≤±1°C accuracy
Controller	Dual-row LED digital display
Temperature Control Method	PID intelligent temperature control
Heating Method	Electric heating
Cooling Method	Compressor refrigeration
Refrigerant	Fluorocarbon-free and environmentally friendly
Power Supply Voltage	AC220V/10A
Timing Range	1 to 9999 minutes
Operating Mode	Constant value operation, timed operation
Water Tank Dimensions (W×D×H) mm	250200150	250200200	300250200	280250280	400325230
Capacity L	7.5	10	15	20	30
Flow Rate L/min	4	4	4	4	13
Rated Power	0.6/0.8/1.2/1.7/2.3KY	0.9/1.2/1.6/2.1/2.9 kw	1.5/1.8/2.2/2.7/3 4kw	2/2.3/2.7/3.2/3.9kw	2.7/3/3.4/3.9/4.6 kw

1. GB/T 26808-2011 Constant-temperature baths and constant-temperature circulation units — Low-temperature constant-temperature baths

2. GB/T 32710.3-2016 Safety specifications for environmental testing instruments and equipment — Part 3: Low-temperature constant-temperature baths

1. Over-temperature alarm
2. Fast-acting fuse
