1. Integrated temperature and carbon dioxide intelligent controller, equipped with power-on self-test function and PID logic calculation function, which can automatically correct temperature deviations based on the calculation results;
2. 5.7-inch LCD screen controller with three-row digital display, showing constant temperature time, operating temperature, set temperature, heating status, CO2 concentration, over-temperature alarm, and other information on one screen, allowing real-time monitoring of the experiment process;
3. The entire series uses far-infrared carbon dioxide sensors (IR) to measure carbon dioxide concentration in real time for precise control;
4. Automatic tracking of operating status; if the temperature exceeds the limit, heating is automatically cut off, and an audible and visual alarm reminds the experiment operator to ensure the smooth progress of the experiment;
5. Automatic saving of parameters in case of emergencies, and power-on recovery function; also features sensor self-diagnosis, over-temperature, and fault alarm functions;
6. Moisture is generated through the evaporation of a built-in humidifying tray to maintain high humidity inside the chamber, adapting to the cell growth environment;
7. Standard equipped with a high-efficiency microbial filter, which filters the air entering the incubator, removing 99.9% of dust particles larger than 0.3μm, ensuring that the air inside the chamber is not contaminated by the outside during operation;
8. All products are equipped with UV sterilization function, which can kill 99.9% of attached and suspended bacteria;
9. The door temperature control device effectively prevents condensation on the inner glass door, facilitating observation;

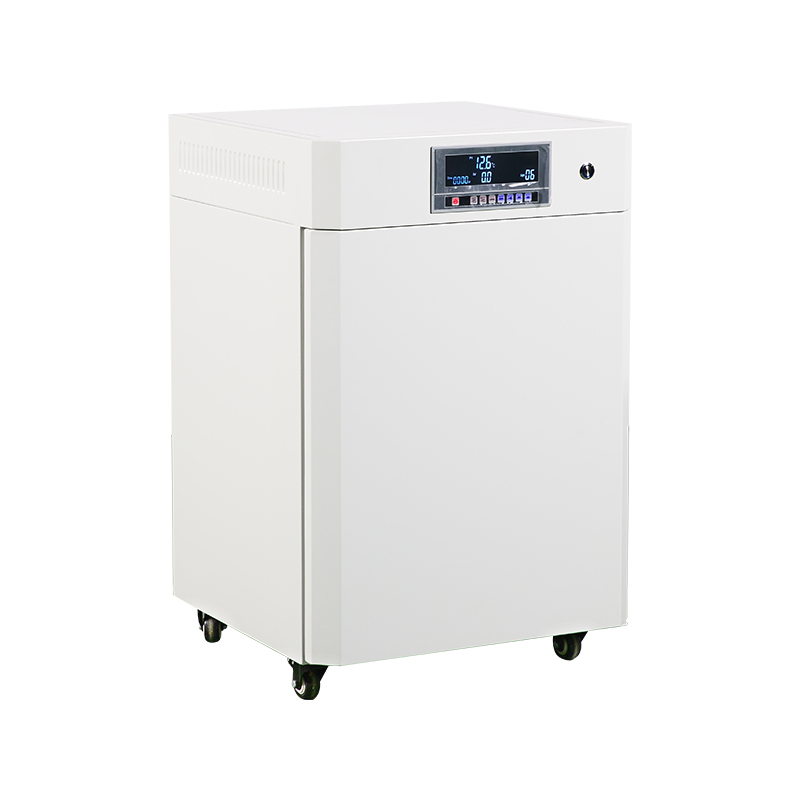

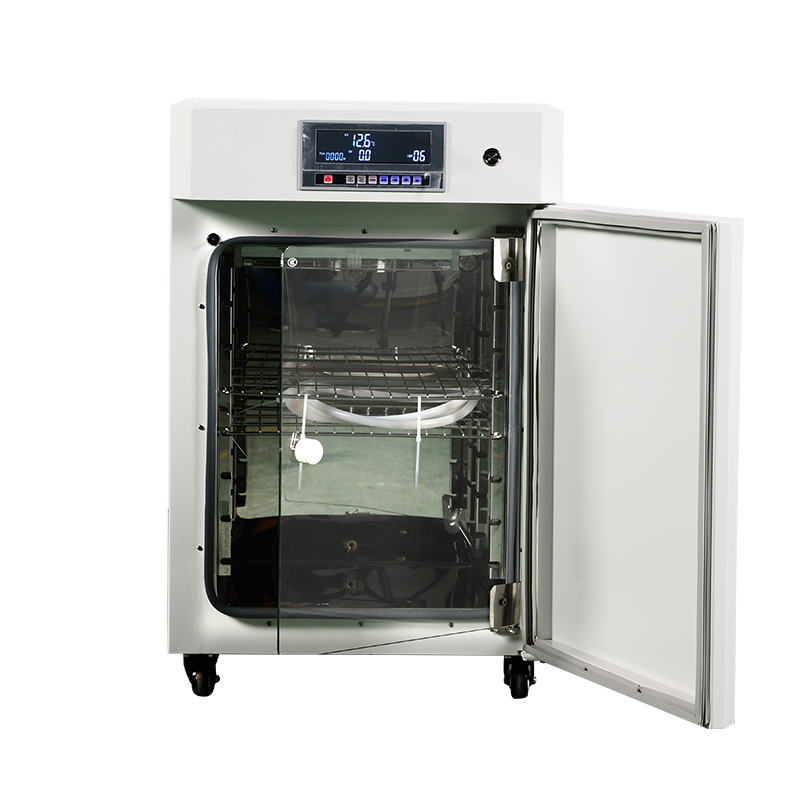

10. Uses a corrosion-resistant stainless steel inner liner with rounded corners and antibacterial coating treatment to reduce cleaning dead ends and reduce the risk of microbial growth. Combined with the HEPA high-efficiency filtration system, it effectively blocks external pollution and extends the service life of the equipment;
11. Double-layer door structure, with an outer door made of carbon steel and an inner door of insulated transparent glass, balancing observation convenience with the stability of temperature and carbon dioxide concentration inside the chamber;
Data can be viewed and parameters adjusted remotely via mobile APP or PC, and experimental data can be exported in Excel format for analysis (optional);
|
Model |
BPN-50CH |
BPN-80CH |
BPN-160CH |
BPN-270CH |
BPN-50CW |
BPN-80CW |
BPN-160CW |
BPN-270CW |
||||
|
BPN-50CHR |
BPN-80CHR |
BPN-160CHR |
BPN-270CHR |
BPN-50CWR |
BPN-80CWR |
BPN-160CWR |
BPN-270CWR |
|||||
|
Temperature control method |
CH/CW: LCD Controller CHR/CWR: 5-inch touchscreen controller（Humidity monitoring function is optional） |
|||||||||||
|
Temperature Range |
RT＋5～65℃ |
|||||||||||
|
Temperature Fluctuation |
0.1℃/±0.5℃ |
|||||||||||
|
CO₂ Control Range |
0-20% |
|||||||||||
|
Sterilization Method |
UV |
|||||||||||
|
Door Temperature Control |
Anti-fog observation window |
|||||||||||
|
Humidification Method |
Water Pan Natural Evaporation |
|||||||||||
|
Heating Method |
Air-jacket Type |
Water-jacket Type |
||||||||||
|
CO₂Control Method |
CH/CW refers to domestically produced far-infrared temperature sensors, while CHR/CWR refers to imported infrared sensors. |
|||||||||||
|
Interior Dimensions (mm) |
345x355x410 |
400x390x500 |
500x490x650 |
600x590x750 |
345x355x410 |
400x390x500 |
500x490x650 |
600x590x750 |
||||
|
Exterior Dimensions (mm) |
475x496x735 |
530x550x830 |
630x650x980 |
730x750x1080 |
475x496x735 |
530x550x830 |
630x650x980 |
730x750x1080 |
||||
|
Volume |
50L |
80L |
162L |
270L |
50L |
80L |
162L |
270L |
||||
|
Gross weight/Net weight KG |
59/44 |
71/56 |
94/74 |
144/119 |
64/49 |
77/62 |
102/82 |
154/128 |
||||
|
Power Supply Voltage |
AC220v/10A |
|||||||||||
|
Rated Power |
0.25kw |
0.35kw |
0.55KW |
0.75KW |
0.5KW |
0.75KW |
1kw |
1.2kw |
||||
|
Standard Shelves |
2PC |
|||||||||||
|
Ambient Temperature |
5～35℃ |
|||||||||||
