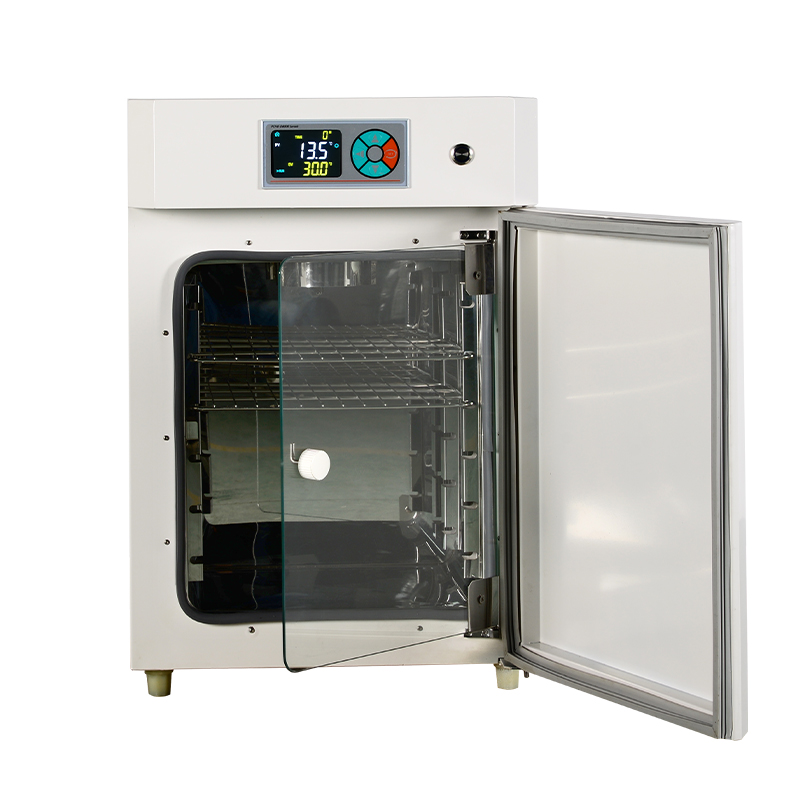

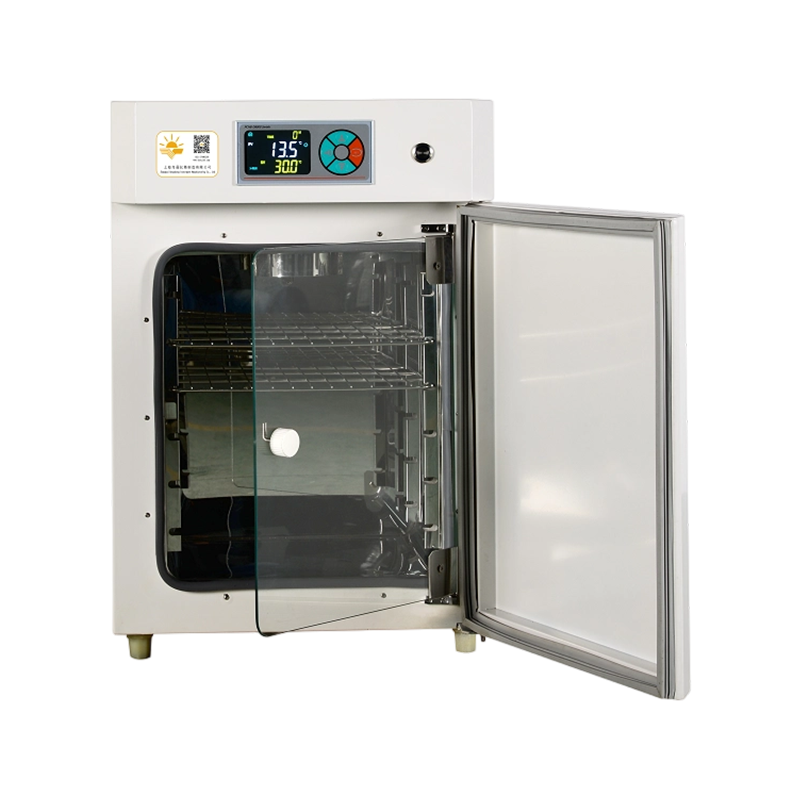

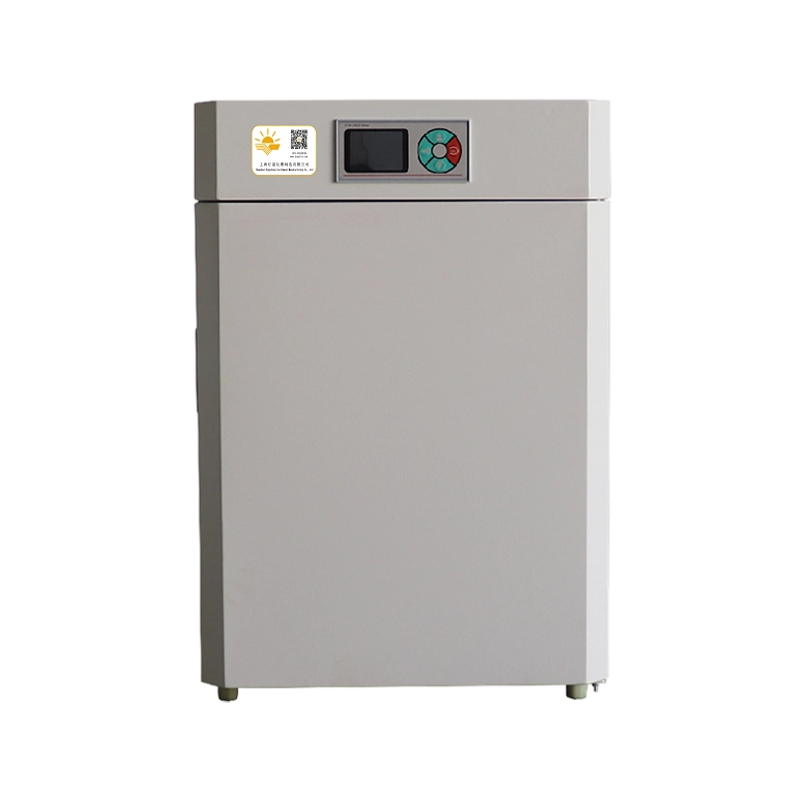

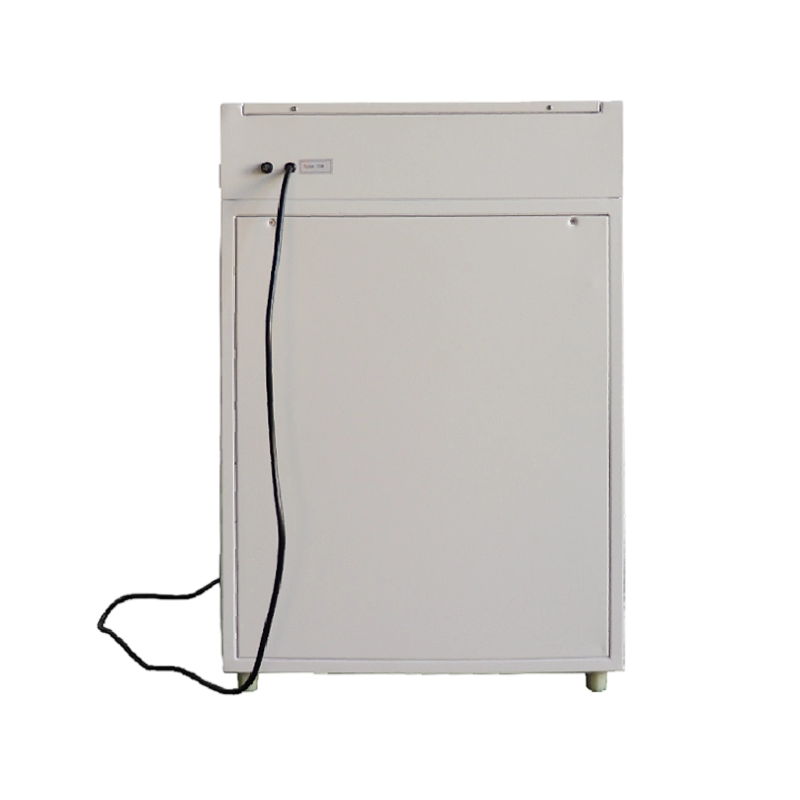

Electrically Heated Constant Temperature Incubator

Electric heating constant-temperature incubators are suitable for use in healthcare, pharmaceuticals, biology, agriculture, scientific research, food processing and other industries, serving as essential equipment for the cultivation of strains, bacteria and microorganisms, fermentation processes, and constant-temperature testing.

PREV：Water-Jacketed Constant Temperature Incubator
NEXT：No next article

Product Introduction
Selection Table
Industry Standards
Safety Protection
Optional Accessories

1. The entire product range employs a microcomputer-based intelligent temperature control system with an integrated PID logic module. This automatically simulates internal PID parameters (self-tuning function) according to varying environmental conditions to achieve optimal temperature regulation.

2. A 5.7-inch LCD display features three rows of digital readouts, simultaneously showing constant temperature duration, operating temperature, setpoint temperature, heating status, and over-temperature alarm information for real-time monitoring of experimental progress.

3. Top-mounted branded circulation fan ensures forced hot air circulation within the chamber, enhancing temperature uniformity;

4. Modular control system incorporates power-on self-test functionality, delivering safe, reliable, stable and efficient operation;

5. Automatic parameter saving during emergencies with power-restoration capability, alongside sensor self-diagnosis, over-temperature and fault alarm functions;

6. Inner chamber constructed from SUS304 stainless steel with rounded corners for ease of cleaning. Integrated multi-tiered shelves with adjustable partitions maximise space utilisation;

7. Outer casing crafted from premium cold-rolled steel plate, phosphated and finished with electrostatic powder coating for a pristine, anti-static surface;

8. Features external heating with premium AGR high-temperature silicone heating elements, offering 3-5 times the lifespan of standard heating films and delivering more uniform heating;

9. Double-door construction comprises an inner tempered glass door and an outer magnetic seal door, providing independent sealing for easy access and excellent airtightness. Enables 360-degree observation of test items without opening the inner glass door.

Model	DHP-9012	DHP-9032	DHP-9052	DHP-9082	DHP-9162	DHP-9272
Model	DHP-9012P	DHG-9032P	DHP-9052P	DHP-9082P	DHP-9162P	DHP-9272P
Temperature Range	RT+5~65℃
Temperature Resolution	0.1℃
Temperature Fluctuation	≤±0.5℃
Controller	5.7-inch LCD widescreen digital display / P-type: Programme (15 segments)
Temperature Control Method	PID intelligent calculation
Cycling Method	Forced convection
Power Supply Voltage	AC 220V/10A
Timing Range	1–9999 minutes
Operating Mode	Constant value operation / Timed operation / Programme operation
Internal Chamber Dimensions (m)	250z260x250	340x320x320	350x350z410	400x400z500	500z500x650	600x600x750
External Dimensions (m)	380x365x540	470x425x600	495x530z715	545x580z805	645x680x955	745π780x1055
Packaging Dimensions (m)	480x470x600	570x525x750	600x680z800	650x730x890	750x830x1040	850x930z1140
Volume	16L	35L	50L	80L	162L	270L
Gross/Net Weight (kg)	38/23	46/31	56/40	60/44	80/65	110/95
Standard Shelves	2
Shelf Load Capacity	10KG
Rated Power	0.15KY	0.25KW		0.351W	0.55KW	0.75KW

1. YY 0027-1990 Electric Heating Constant Temperature Incubator

2. GB 4789.2-2022 Food Microbiology Testing - Determination of Total Colony Count

3. GB/T 32710.9-2016 Safety Specifications for Environmental Testing Instruments and Equipment - Part 9: Electric Heating Constant Temperature Incubators

1. Over-temperature alarm
2. Fast-acting fuse
3. Earth leakage protection

1. Printer
2. USB port
3. Independent temperature limiter
4. Ultraviolet sterilisation system
5. Test port
