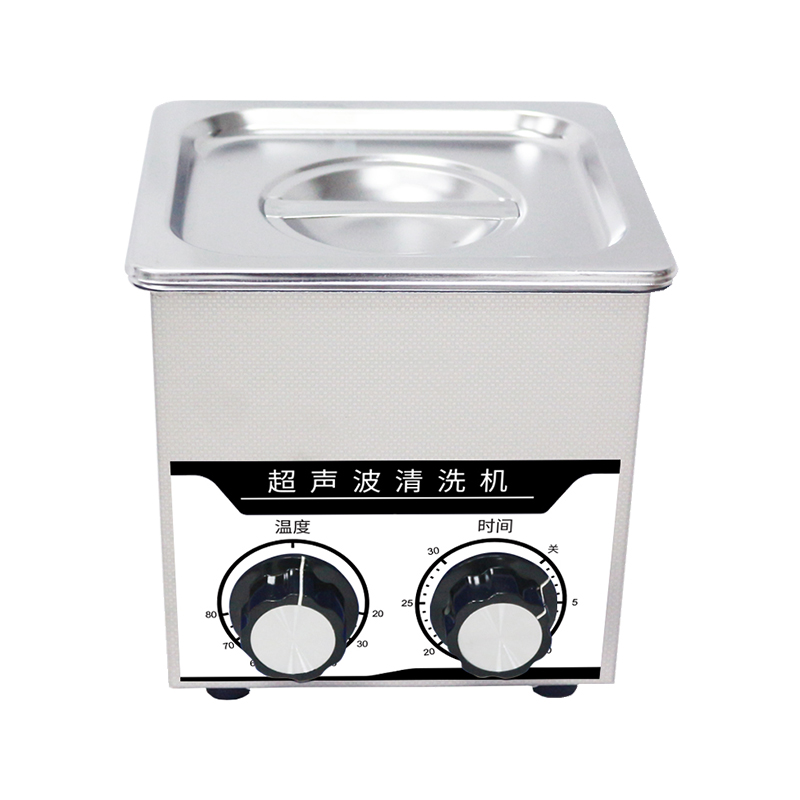

Easy to install and use Ultrasonic Cleaning Machine

1. The cleaning machine's inner tank and outer casing are entirely made of imported high-quality 304 stainless steel;
2. The vibrating surface steel plate of the cleaning machine uses 2.0mm thick 304# stainless steel plate to extend the service life of the cleaning machine;
3. Features a brand-new electronic circuit drive, with power controlled by thyristors, providing precise control and significantly improved efficiency;
4. Temperature and time are set and controlled digitally, ensuring greater accuracy and reliability;
5. All working states are controlled by a microcomputer, with a memory function that remembers the previously set working parameters, facilitating cleaning operations;
6. Integrated design for easy installation and use, eliminating the need for a separate control box bracket;
7. Ultrasonic working time is adjustable from 1-30 minutes, suitable for various applications;
8. Cleaning temperature is adjustable within the range of 20-80 degrees Celsius;
9. The cleaning basket is made of stainless steel mesh screen formed by argon welding, improving cleaning effectiveness;
10. The cleaning machine's outer casing is made of high-quality stainless steel plate, providing a beautiful and elegant appearance;
11. The cleaning tank is made of high-quality stainless steel, formed by a single stamping process, with no welding points, resulting in better waterproof performance.

PREV：PID digital display temperature controller design Heating Plate
NEXT：Low Temperature Constant Temperature Circulating Bath

Instrument Selling Points
Structural Features
Control System
Selection Table
Optional Accessories

Ultrasonic Cleaner (Digital display heated model)

Model

DS-06A

DS-08A

DS-10A

DS-20A

DS-25A

DS-30A

DS-40A

DS-50A

DS-60A

DS-70A

DS-80A

DS-100A

Controller

LED Digital display

Temperature Range

RT～80℃

Ultrasonic Frequency

40KHZ

Timer Range

1～30min

Cleaning Tank (mm)

150*85*65

150*135*65

150*135*100

240*135*100

300*150*100

300*150*150

300*240*150

300*240*200

330*300*150

330*300*200

500*300*150

500*300*200

External Dimensions (mm)

180*110*140

180*170*140

180*170*180

270*170*190

330*180*190

330*180*270

330*270*270

330*270*320

360*330*270

360*330*320

550*330*270

550*330*320

Capacity L

0.8

1.3

4.5

Gross Weight

1.5KG

2.5KG

3KG

4KG

4.2KG

6KG

8KG

9KG

10KG

11KG

13KG

15KG

Power Supply Voltage

AC220V/50Hz

Ultrasonic Power

60W

80W

120W

180W

240W

300W

360W

420W

480W

600W

Heating Power

200W

400W

600W

800W

1000W

Drain Valve

Have

Operating Environment

260W

280W

320W

580W

640W

700W

960W

1020W

1280W

1600W

Ultrasonic cleaner (infinitely adjustable ultrasonic power, digital display heating model)
Model	DS-20AL	DS-25AL	DS-30AL	DS-40AL	DS-50AL	DS-60AL	DS-70AL	DS-80AL	DS-100AL
Controller	EDDigital display
Temperature Range	RT～80℃
Ultrasonic Frequency	40KHZ
Timer Range	1～30min
Cleaning Tank (mm)	240135100	300150 100	300150 150	300240 150	300240 200	330300 150	330300 200	500300 150	500300 200
External Dimensions (mm)	270170 190	330180 190	330180 270	330270 270	330270 320	360330 270	360330 320	550330 270	550330 320
Capacity L	3L	4.5L	6L	10L	14L	15L	19L	22L	30L
Drainage	No	No	Have	Have	Have	Have	Have	Have	Have
Gross Weight (KG)	4KG	4.2KG	6KG	8KG	9KG	10KG	11KG	13KG	15KG
Ultrasonic Power	120W		180W	240W	300W	360W	420W	480W	600W
Heating Power	200w		400w			600w		800w	1000w
Operating Environment	0～45℃
