1. Simple and elegant appearance, convenient operation, safe and reliable operation, and multiple specifications and sizes available;
2. Microcomputer intelligent temperature control system, standard with power-on self-check function, and features fuzzy PID logic calculation function. Compared with traditional PID control, it has advantages such as smaller temperature overshoot, faster stabilization time, and better temperature control accuracy; and can automatically correct temperature deviations based on the calculation results;
3. 5.7-inch LCD widescreen controller, three-row digital display, one screen displays constant temperature time, operating temperature, set temperature, heating status, over-temperature alarm and other information, allowing real-time monitoring of the experimental process;
4. Built-in UV sterilization system, with manual control of sterilization time, can regularly kill attached and suspended bacteria in the chamber to ensure a sterile experimental environment;
5. Multiple timing modes are available, including forward timing, countdown timing, constant temperature timing, and start timing, with freely switchable timing units in minutes and hours;
6. The controller has a built-in tracking and monitoring module, which automatically tracks the operating status. If the temperature exceeds the limit, it automatically cuts off heating and provides audible and visual alarms to remind experimental operators, ensuring the smooth progress of the experiment;
7. Automatic parameter saving in case of emergencies, and features power-on recovery/standby function, as well as sensor self-diagnosis function;
8. Brand-name circulating fan, combined with independently developed circulating air duct, can automatically adjust the wind speed according to the temperature to ensure uniform temperature distribution;
9. Modular refrigeration system, using fluorine-free environmentally friendly compressor, low noise and high energy efficiency ratio, strong long-term operation stability;
10. The inner liner is made of high-quality SUS304 mirror stainless steel, which is corrosion-resistant and easy to clean. The four corners of the inner liner are designed with rounded transitions for easy cleaning; the outer shell is made of cold-rolled steel plate, and the surface is treated with phosphating and electrostatic spraying, which is rust-proof and wear-resistant;

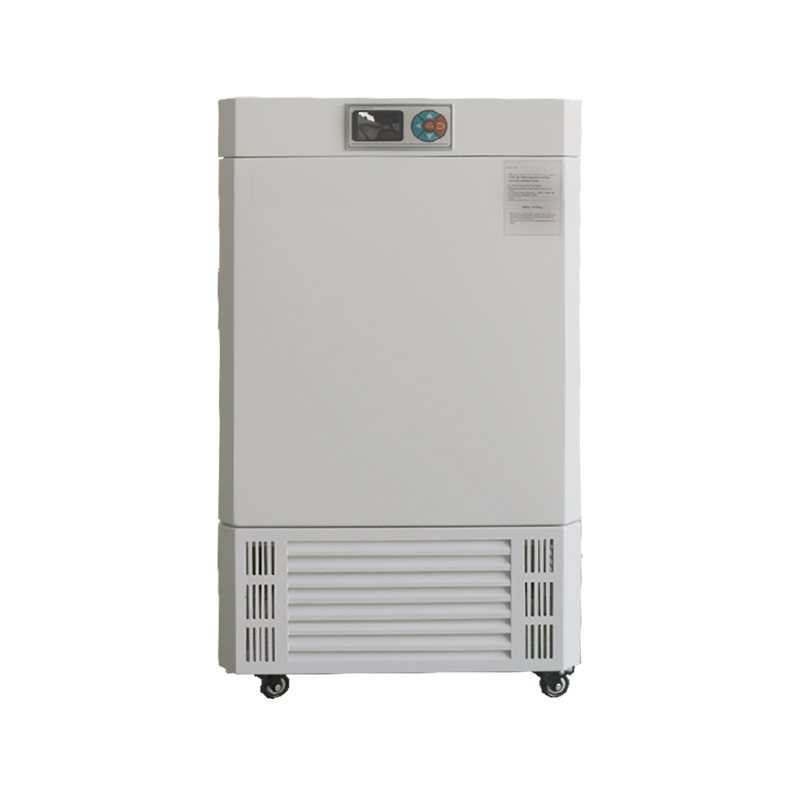

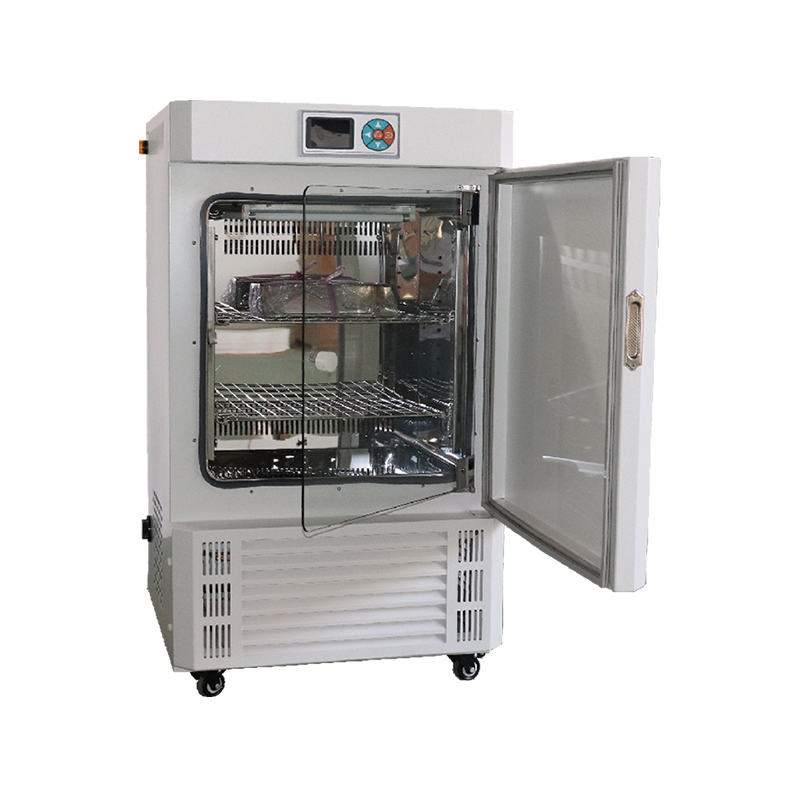

11. Double-door design, the inner door is made of tempered glass for easy observation, and the outer door uses magnetic sealing strips to enhance sealing, isolate external pollution, and ensure a clean internal environment;
12. Expandable RS485 communication and functions such as USB flash drive, printer, and remote control (optional).
|
Model |
MCC-70 |
MCC-100 |
MCC-150 |
MCC-250 |
MCC-300 |
MCC-500 |
|
MCC-70P |
MCC-100P |
MCC-150P |
MCC-250P |
MCC-300P |
MCC-500P |
|
|
Controller |
5.7-inch widescreen LCD digital display（P-type features 30-segment programmable temperature control） |
|||||
|
Temperature Range |
5～65℃ |
|||||
|
Temperature Fluctuation |
0.1℃/±0.5℃ |
|||||
|
Temperature Uniformity |
±1℃ |
|||||
|
Timer Range |
1～9999min/h |
|||||
|
Sterilization Method |
UV sterilization |
|||||
|
Compressor |
Air-cooled hermetic compressor |
|||||
|
Refrigerant |
134/404Fluorine-free and environmentally friendly type |
|||||
|
Intelligent Security |
Power-on self-test, screen lock, over-temperature alarm, intelligent automatic deviation correction, parameter memory |
|||||
|
Interior Dimensions (mm) |
450*320*500 |
450*380*590 |
480*390*780 |
580*500*850 |
580*540*950 |
700*700*1020 |
|
External Dimensions (mm) |
590*565*1095 |
590*640*1180 |
620*645*1375 |
720*745*1560 |
720*790*1650 |
840*995*1820 |
|
Volume |
72L |
100L |
146L |
246L |
297L |
500L |
|
Gross weight/Net weight KG |
105/80 |
113/88 |
130/105 |
186/156 |
195/165 |
275/225 |
|
Power Supply Voltage |
AC220V/50Hz |
|||||
|
Rated Power |
0.4KW |
0.5KW |
0.5KW |
0.7KW |
1KW |
1.5KW |
|
Standard Shelves |
2 |
3 |
||||
|
Operating Environment |
0～45℃ |
|||||
Products provided by famous enterprises are deeply trusted by users.
Shanghai Dengsheng Instrument Manufacturing Co., Ltd. is a high-tech enterprise integrating R&D, production, sales, and service. We specialize in the manufacture of high-end laboratory equipment, including ovens, incubators, industrial furnaces, and environmental test chambers.
As Mold Incubator Manufacturers and Mold Incubator OEM Factory in China, We boast an 8,000-square-meter modern production facility, a dedicated R&D team, 23 national patents, and ISO-9001 quality management system certification. Our solutions are widely used in cutting-edge fields such as aerospace, semiconductors, biomedicine, automotive, and new materials. We have established in-depth partnerships with top universities and industry leaders, supply Custom Corrosion resistant Mold Incubator, our products are exported to many countries and regions around the world.
Adhering to the principles of "Integrity, Innovation, and Win-Win," we are committed to becoming your trusted partner with reliable quality and dedicated service.
We welcome inquiries and cooperation from both new and existing customers, providing professional equipment solutions.
