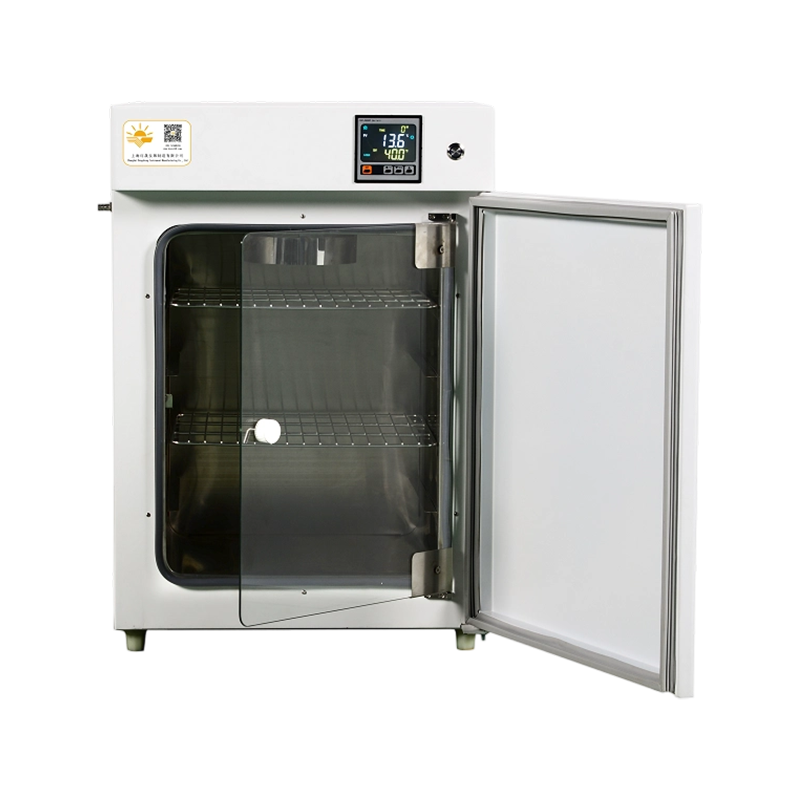

Water-jacketed constant-temperature incubators are suitable for use in healthcare, pharmaceuticals, animal husbandry, aquaculture, biology, agriculture, scientific research, food processing and other industries, serving as essential equipment for storing microbial cultures, cells and bacteria, and cultivating microorganisms.
1. The entire product range employs a microprocessor-based intelligent temperature control system with an integrated PID logic module. This automatically simulates internal PID parameters (self-tuning function) according to varying environmental conditions to achieve optimal temperature regulation.
2. A 5.7-inch LCD display features three rows of digital readouts, simultaneously showing constant temperature duration, operating temperature, setpoint temperature, heating status, and over-temperature alarm information for real-time monitoring of experimental progress.
3. Top-mounted branded circulation fan ensures forced hot air circulation within the chamber, enhancing temperature uniformity;
4. Modular control system incorporates a power-on self-test function, ensuring safe, reliable, stable and efficient operation;
5. Automatic parameter retention during emergencies with power-restoration capability, alongside sensor self-diagnosis and over-temperature/fault alarm functions;
6. Inner chamber constructed from SUS304 stainless steel with rounded corners for ease of cleaning. Integrated multi-tiered shelves with adjustable height maximise space utilisation;
7. Outer casing constructed from premium cold-rolled steel plate, phosphated and finished with electrostatic powder coating for a pristine, anti-static surface;
8. Water-jacketed heating system delivers superior temperature uniformity compared to conventional incubators, with extended temperature retention following power loss;
9. Intelligent water level control system with audible and visual alarms for low water conditions. Specially designed overflow outlet automatically discharges water exceeding the set level;
10. Double-door construction: inner tempered glass door with outer magnetic seal door. Independent sealing ensures ease of opening and excellent airtightness. Enables 360-degree observation of test items without opening the inner glass door;
Translated with DeepL.com (free version)
| GHP-9050P | GHP-9080P | GHP-9160P | GHP-9270P | |
| Temperature Range | RT+5～65℃ | |||
| Temperature Resolution | 0.1℃ | |||
| Temperature Fluctuation | ≤±0.5℃ | |||
| Temperature Uniformity | ±1°C (measured at 37°C) | |||
| Temperature Control Method | 5.7-inch LCD widescreen digital display/program (P denotes 15-segment programmable temperature control) | |||
| Circulation Method | Forced convection | |||
| Power Supply Voltage | AC 220V/10A | |||
| Timing Range | 1 to 9999 minutes | |||
| Operating Mode | Constant-value operation / Timed operation | |||
| Internal Chamber Dimensions (mm) | 350x350x410 | 400x400x500 | 500x500x650 | 600x600x750 |
| External Dimensions (mm) | 495x530x715 | 545x580x805 | 645x680x955 | 745x780x1055 |
| Packaging Dimensions (mm) | 600x680π800 | 650x730x890 | 750x830x1040 | 850x930x1140 |
| Volume | 50L | 80L | 162L | 270L |
| Gross/Net Weight (kg) | 63/48 | 73/58 | 104/89 | 126/106 |
| Standard Shelves | 2 | |||
| Shelf Load Capacity | 10KG | |||
| Rated Power | 0.5KW | 0.8KW | 1.2KW | 1.7KW |
1. GB/T 32710.9-2016 Safety Specifications for Environmental Testing Instruments and Equipment — Part 9: Electric Heating Constant Temperature Incubators
2. GB/T 32710.13-2016 Safety Specifications for Environmental Testing Instruments and Equipment — Part 13: Shakers, Shaking Constant Temperature Water Baths and Shaking Constant Temperature Incubators
1. Over-temperature alarm
2. Rapid fuse
3. Earth fault protection
1. Printer
2. USB port
3. Independent temperature limiter
4. Ultraviolet sterilisation system
