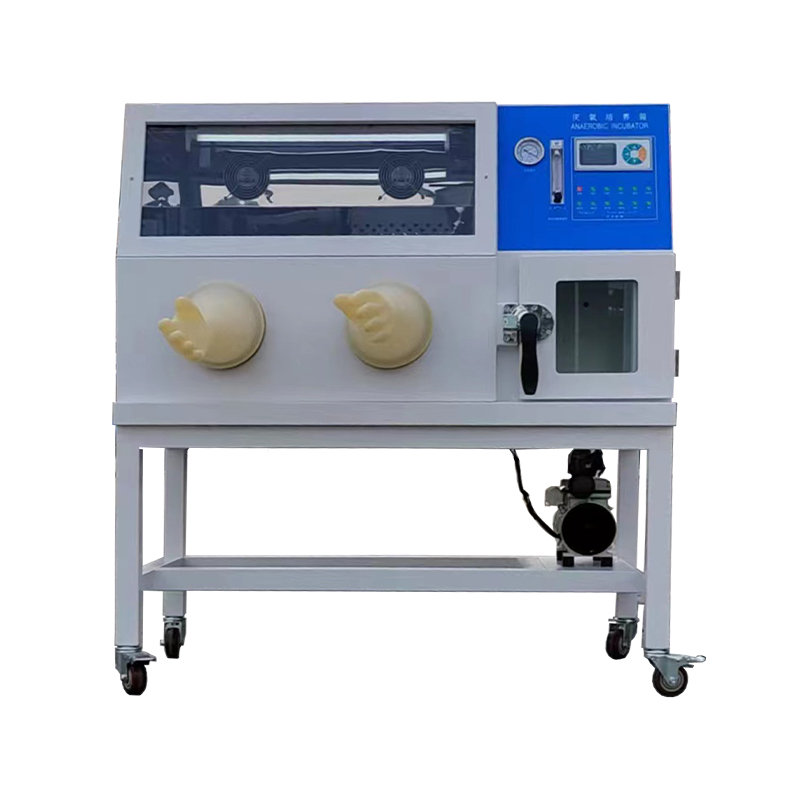

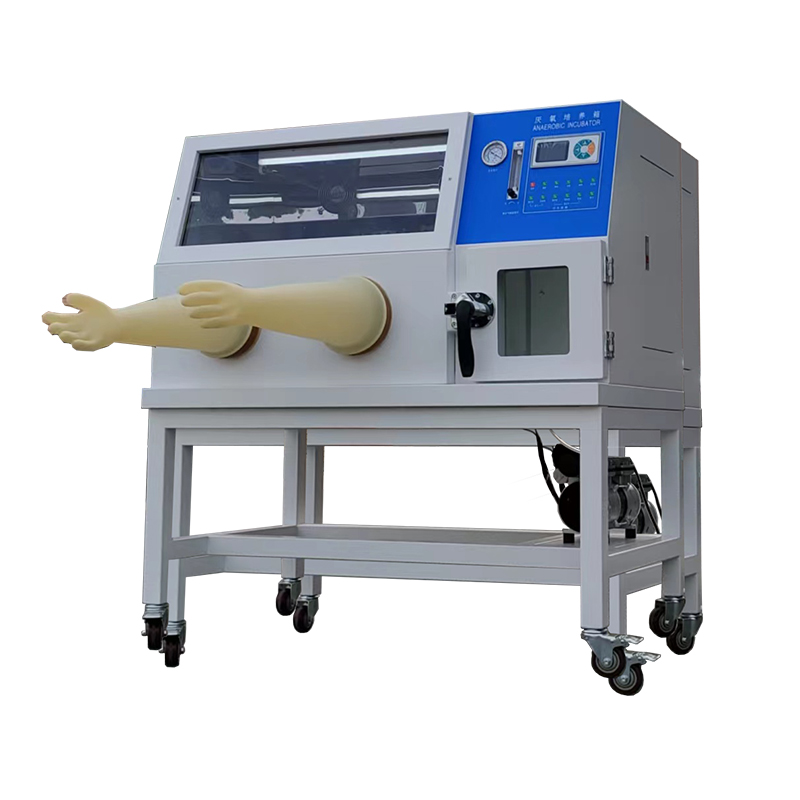

1. This product is designed and manufactured using scientific technology, consisting of three main parts: an operating chamber, a culture chamber, and a sampling chamber, along with advanced and reliable temperature control circuitry, a rational gas circuit design, and an easy-to-operate sterilizer.
2. This product uses scientific and simple methods to achieve a high-precision, constant-temperature anaerobic environment, allowing operators to easily obtain an anaerobic environment and conveniently perform operations and cultivate anaerobic bacteria within that environment.
3. The temperature control system uses a microcomputer P.I.D. intelligent controller with a 5.7-inch high-definition LCD screen, which accurately and intuitively displays the actual temperature in the culture chamber. It also includes an effective temperature limit protection device (over-temperature audible and visual alarm), ensuring safety and reliability.
4. The culture chamber is equipped with a standard UV sterilization device and an independent sterilization switch, capable of eliminating 99.9% of airborne and surface bacteria.
5. Air enters the chamber through a high-efficiency microbial filter, which filters out 99.9% of dust particles larger than 0.3μm, ensuring that the air inside the chamber is not contaminated by the outside environment during operation.
6. The inert gas circuit is equipped with a float flow meter, allowing for arbitrary adjustment of the gas flow rate and effectively controlling the input of different flow rates of safe gases.
7. Both the transfer chamber and the operating chamber are made of stainless steel plates, and their front windows are made of transparent acrylic, which has high light transmittance and impact resistance, allowing for clear observation of operations and changes inside the chamber.
8. Special gloves are used for operation, providing reliability, comfort, and flexibility for convenient use.
9. An RS-485 communication interface can be added for connection to a computer or printer (optional).
10. A built-in printer can be added to print detection data in real time, facilitating experimental research (optional).
11. A compressor can be added to achieve low-temperature control, preventing the original culture materials from being damaged due to temperature increases (optional).
|
Model |
DSYQY-II |
DSYQY-III |
|
Incubation Chamber Temperature Range |
Room Temperature +5℃～60℃ |
Room Temperature +3℃～60℃ |
|
Temperature Resolution |
0.1℃ |
0.1℃ |
|
Temperature Fluctuation |
±0.5℃ |
±0.3℃ |
|
Temperature Uniformity |
±1℃ |
±0.7℃ |
|
Working Hours |
Continuous |
Continuous |
|
Sample chamber anaerobic condition formation time |
<5 min |
<5 min |
|
Operation chamber anaerobic condition formation time |
<60 min |
<60 min |
|
Anaerobic environment maintenance time |
12 hours after the supply of trace gas mixture to the chamber is stopped |
12 hours after the supply of trace gas mixture to the chamber is stopped |
|
Incubator operation chamber dimensions (mm) |
800*650*660 |
800*650*660 |
|
Exterior Dimensions(mm) |
1200*730*1320 |
1200*730*1320 |
|
Net weight / Gross weight (kg) |
285/340 |
305/355 |
|
Operating Power Supply |
AC220V/50HZ |
AC220V/50HZ |
|
Power Consumption (W) |
1450 |
1500 |
|
Mixed gas ratio / Gas mixture composition |
Nitrogen gas: 85% Hydrogen: 5% Carbon Dioxide: 10% |
Nitrogen gas: 85% Hydrogen: 5% Carbon Dioxide: 10% |
|
Nitrogen gas |
99.9% high-purity nitrogen |
99.9% high-purity nitrogen |
Products provided by famous enterprises are deeply trusted by users.
Shanghai Dengsheng Instrument Manufacturing Co., Ltd. is a high-tech enterprise integrating R&D, production, sales, and service. We specialize in the manufacture of high-end laboratory equipment, including ovens, incubators, industrial furnaces, and environmental test chambers.
As High precision Constant temperature Anaerobic Incubator Manufacturers and High precision Constant temperature Anaerobic Incubator Factory in China, We boast an 8,000-square-meter modern production facility, a dedicated R&D team, 23 national patents, and ISO-9001 quality management system certification. Our solutions are widely used in cutting-edge fields such as aerospace, semiconductors, biomedicine, automotive, and new materials. We have established in-depth partnerships with top universities and industry leaders, supply High precision Constant temperature Anaerobic Incubator Wholesale, our products are exported to many countries and regions around the world.
Adhering to the principles of "Integrity, Innovation, and Win-Win," we are committed to becoming your trusted partner with reliable quality and dedicated service.
We welcome inquiries and cooperation from both new and existing customers, providing professional equipment solutions.
