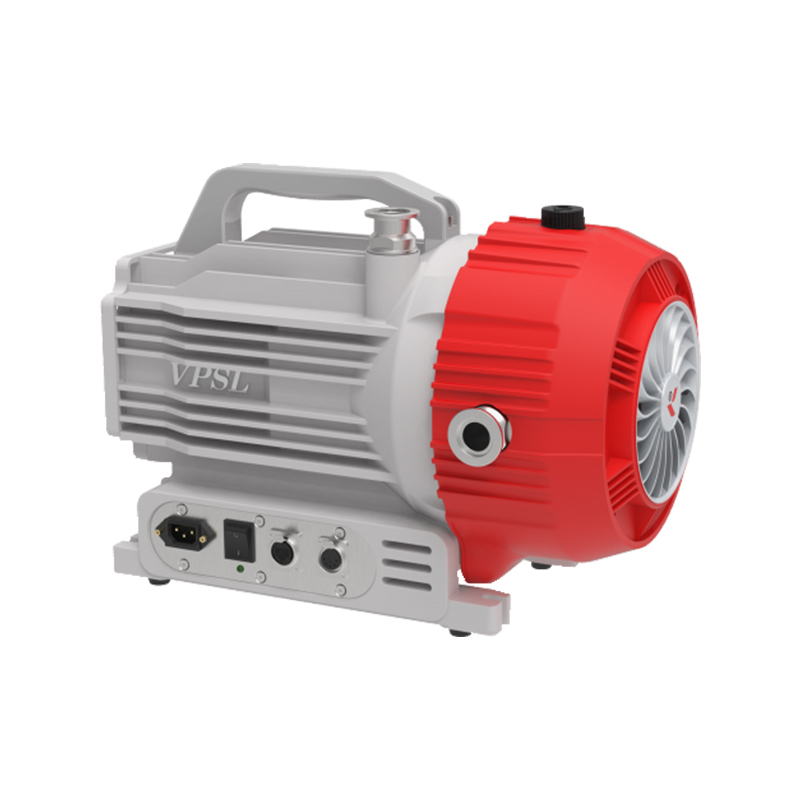

The Scroll Vacuum Pump is designed around a smooth, oil-free compression mechanism that delivers high efficiency, low noise, and reliable performance. Its working principle is simple yet highly effective: air is first drawn in and completely sealed within the volume chamber, where compression begins. As the scroll elements move, compression continues gradually toward the center of the chamber, ensuring stable and vibration-free operation. The air is then fully compressed at the center point, where exhaust starts, and once the exhaust is completed, a full compression cycle ends. This continuous and uniform process results in clean vacuum generation with minimal wear. Thanks to these advantages, scroll vacuum pumps are widely used in applications such as laboratories, medical equipment, semiconductor processing, analytical instruments, and packaging systems, where quiet operation, oil-free performance, and high reliability are essential.
1. Air is drawn in and completely sealed within the volume chamber; compression begins;
2. Compression continues gradually towards the center point of the volume chamber;
3. The air is compressed to the center point of the volume chamber, and exhaust is about to begin;
4. Exhaust is completed, and a complete compression cycle ends.
|
Model |
VPSL12 |
VPSL16 |
VPSL36 |
|
Theoretical Pumping Speed m3/hr |
12.2 |
16.8 |
36.2 |
|
Ultimate Vacuum mbar·l/s |
0.007 |
0.01 |
0.01 |
|
Motor Power (W) |
400 |
400 |
1200 |
|
Input Voltage (V) |
100-240 |
100-240 |
100-240 |
|
Noise Level dB(A) |
53 |
53 |
56 |
|
Inlet/Outlet Flanges |
KF25/KF25 |
KF25/KF25 |
KF40/KF25 |
|
Water Vapor Handling Capacity |
136 |
268 |
270 |
|
Leakage Rate |
＜1×10-6 |
＜1×10-6 |
＜1×10-6 |
|
Exterior Dimensions(L×W×H) mm |
430×255×290 |
430×255×290 |
518×362×305 |
|
Weight (kg) |
25 |
25 |
47 |
|
Cooling Method |
Air Cooling |
Air Cooling |
Air Cooling |
|
Ambient Temperature℃ |
5~40 |
5~40 |
5~40 |
Products provided by famous enterprises are deeply trusted by users.
Shanghai Dengsheng Instrument Manufacturing Co., Ltd. is a high-tech enterprise integrating R&D, production, sales, and service. We specialize in the manufacture of high-end laboratory equipment, including ovens, incubators, industrial furnaces, and environmental test chambers.
As Scroll Vacuum Pump Manufacturers and Scroll Vacuum Pump Factory in China, We boast an 8,000-square-meter modern production facility, a dedicated R&D team, 23 national patents, and ISO-9001 quality management system certification. Our solutions are widely used in cutting-edge fields such as aerospace, semiconductors, biomedicine, automotive, and new materials. We have established in-depth partnerships with top universities and industry leaders, supply Scroll Vacuum Pump Wholesale, our products are exported to many countries and regions around the world.
Adhering to the principles of "Integrity, Innovation, and Win-Win," we are committed to becoming your trusted partner with reliable quality and dedicated service.
We welcome inquiries and cooperation from both new and existing customers, providing professional equipment solutions.
