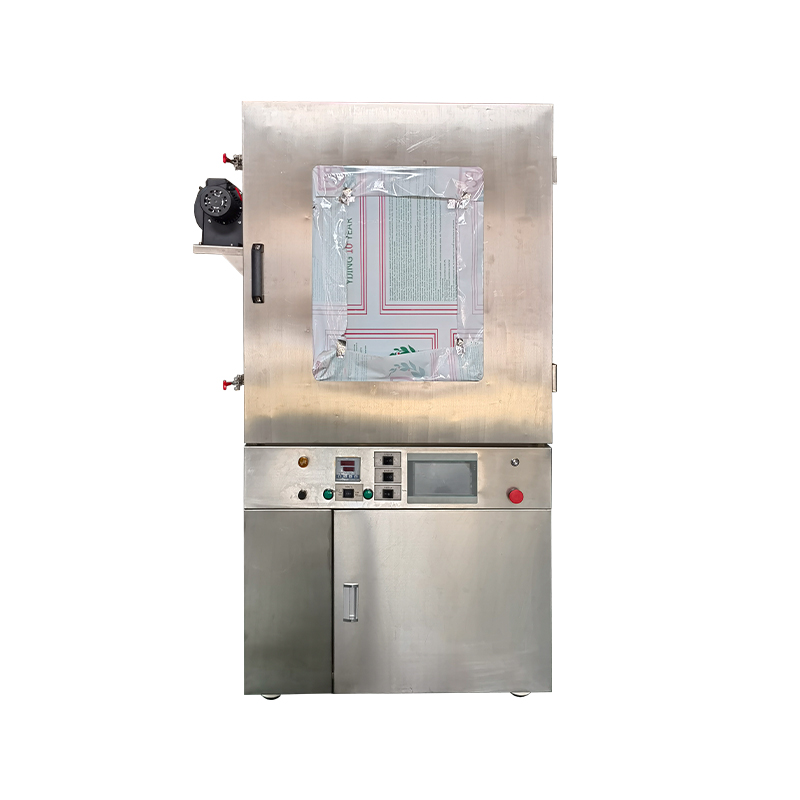

The air-cooled vacuum drying oven (also known as an air-cooled vacuum drying oven with cooling function) is a new generation of intelligent vacuum equipment strategically developed by our company to lead high-end manufacturing and precision scientific research processes. It surpasses the performance limitations of traditional equipment, integrating heating, constant temperature control, timing, vacuum control, pressure regulation, and the core function of rapid cooling into a single unit. This achieves a complete process from high-temperature treatment to rapid cooling, significantly improving production efficiency and process consistency. The equipment adheres to a modular design concept, possessing powerful functional expandability. Advanced modules such as nitrogen protection, high-efficiency oil fume filtration, multi-segment programmed temperature control, and programmed pressure control can be flexibly added according to customers' specific process requirements to meet complex and demanding application scenarios. Its reliability and advanced features have led to its widespread application, making it an ideal device for driving technological innovation and quality upgrades.
① Temperature and Vacuum Control: A high-end vacuum device integrating heating, constant temperature, timing, vacuum, constant pressure, constant pressure timing, and rapid cooling functions, capable of quickly lowering the working chamber temperature of the vacuum drying oven and accelerating the experimental process;
② Rapid Cooling: An external high-efficiency forced air circulation system injects a strong stream of cold air into the periphery of the high-temperature working chamber after the work cycle is completed, achieving rapid temperature reduction and completely overcoming the cooling bottleneck of traditional equipment, significantly improving the efficiency of experiments and production;
③ Color Touch Screen Controller: Equipped with an advanced 7-inch intelligent touch screen controller, allowing for precise setting of core parameters such as temperature, constant temperature time, heating rate, vacuum degree, and constant pressure time. It can also execute commands such as automatic pressure relief and automatic inert gas filling, meeting complex process requirements;
④ Program Groups: Excellent performance is reflected in its powerful program processing capabilities, supporting up to 100 groups of complex programs, each with 100 segments. Users can preset and store complete process curves, easily achieving automated operation for batch production, greatly improving process consistency and repeatability;
⑤ Data Security: In terms of data security and management, the system features a rigorous three-level permission management system (administrator, engineer, operator), combined with a screen lock function, effectively preventing unauthorized operations and preventing the risk of leakage of confidential process parameters and data, providing users with a safe, convenient, and forward-looking control experience;
⑥ Operational Safety: Adhering to the design concept of safety first, the controller has built-in over-temperature alarm and automatic heating cut-off functions, providing double protection to ensure a foolproof experimental process;
⑦ Free Switching of Operating Modes: Free switching between fixed value mode and program mode;
⑧ Guaranteed After-Sales Service: A comprehensive after-sales service network covering most areas of the country is provided to ensure worry-free use for users (Note: excluding a few remote towns and villages);
⑨ Technical Support Solutions: Provides multi-faceted technical guidance including video, telephone, and online video tutorials, intuitively demonstrating equipment performance and operation methods, helping users quickly master the equipment.
① Appearance: Classic vertical integrated design, with the vacuum pump concealed in the lower cabinet, resulting in a compact structure that embodies modern industrial aesthetics;
② Shell Material: Made of selected high-quality cold-rolled steel plate (Q235), precision-formed by CNC machining. The surface is treated with phosphating and anti-static powder coating, creating a solid and durable shell. It is anti-static, corrosion-resistant, and scratch-resistant, ensuring lasting quality;
③ Working Chamber: Made of selected 3mm thick 304 stainless steel, precision-machined by CNC, possessing excellent high-temperature stability and corrosion resistance. The surface is smooth and dense, ensuring long-lasting performance and providing a solid guarantee for high-end processes;
④ Control Panel: Equipped with a high-end color touch screen controller, accurately displaying parameters such as set temperature and time. It features intelligent fault diagnosis and alarm prompts, providing intuitive and simple operation, giving users excellent control at their fingertips;
⑤ Vacuum Gauge: Equipped with a high-precision shock-resistant vacuum gauge, with a vacuum accuracy of 2.5 grade. It is stable, reliable, and highly responsive, quickly transmitting the real-time vacuum status inside the chamber to the control center, providing accurate data support and assurance for precision processes;
⑥ Heating Tubes: Custom-made ultra-long-life SUS304 stainless steel heating tubes, with optional baffle/surrounding heating structure, precisely adapted to the process, ensuring uniform and efficient heating;
⑦ Sealing Strip: Equipped with a self-developed molded silicone rubber sealing ring, with a circumferential convex line structure and a unique active vacuum breaking sealing technology. It instantly forms a channel during pressure release, greatly improving vacuum breaking efficiency and ensuring that the door can be easily opened after pressure release;
⑧ Mesh Shelves: Removable mesh shelf design greatly improves the utilization and flexibility of the working chamber space, while making cleaning and maintenance extremely simple and efficient;
⑨ Insulation Layer: 100mm thick high-purity ceramic fiber cotton (Al₂O₃) is filled between the shell and the working chamber, providing excellent thermal insulation, greatly reducing heat loss, ensuring constant temperature stability, and achieving high energy efficiency;
⑩ Emergency Pressure Relief Valve: Classic stainless steel pressure relief valve, easy and sensitive to operate, and reliably sealed.
① Equipped with a 7-inch intelligent touchscreen controller, serving as the control center of the equipment, it makes complex process management intuitive and efficient. The controller provides precise setting of core parameters such as temperature, constant temperature time, heating rate, vacuum degree, and constant pressure time, and can execute advanced commands such as automatic pressure relief and automatic inert gas filling, fully meeting the needs of precision processes;
② Diverse timing methods: 1. The timing unit can be freely switched between minutes and hours; 2. Two timing modes: timing from power-on and timing after reaching constant temperature;
③ Supports complex program programming of 100 groups, each with 100 segments. Users can preset and store complete process curves. During use, simply recall the program and click run to easily achieve automated operation for batch production, greatly improving process consistency and repeatability;
④ In terms of data security and management, the system features a three-level permission management system (administrator, engineer, operator), effectively preventing unauthorized operations and ensuring the security of critical process parameters and data, preventing the leakage of confidential process parameters;
⑤ Operational safety: The controller has built-in over-temperature alarm and automatic heating cut-off functions, providing double protection to ensure a foolproof experimental process;
⑥ Power failure recovery function: It has intelligent timed shutdown and automatic power-on recovery functions, seamlessly connecting to preset processes and ensuring the continuity of the process and the integrity of the data.
⑦ Long-term parameter memory and high-precision temperature deviation correction, combined with advanced self-tuning technology, can quickly and accurately match the best control parameters, significantly improving temperature control accuracy and equipment response speed;
⑧ Multiple modes can be freely switched: fixed value mode/timed mode switching.
|
Model |
DEP-6050FC |
DEP-6090FC |
DEP-6150FC |
DEP-6210FC |
DEP-6250FC |
DEP-6500FC |
|
Controller |
7-inch color touchscreen controller |
|||||
|
Temperature Sensor |
PT100 Platinum RTD |
|||||
|
Program group |
100 groups / 100 segments |
|||||
|
Safety |
Three-level access control (Administrator, Engineer, Operator) |
|||||
|
Temperature Range |
RT+10～250℃ |
|||||
|
Temperature Resolution |
0.1℃ |
|||||
|
Temperature Fluctuation |
≤±0.5℃ |
|||||
|
Cooling Rate |
2～10℃/min(Average) |
|||||
|
Timer Range |
1～9999min |
|||||
|
Timing Mode |
Start timing / Hold timing / No timing |
|||||
|
Timing Direction |
Count-up/Count-down |
|||||
|
Timing Unit |
Minute/Hour |
|||||
|
Vacuum Gauge |
Electronic type (resistive silicon) |
|||||
|
Vacuum Gauge Materials |
Stainless Steel |
|||||
|
Vacuum Gauge Accuracy |
0.1%FS |
|||||
|
Ultimate Vacuum |
≤100Pa |
|||||
|
Operation Mode |
Constant / Program Operation |
|||||
|
Security Protection |
Over-temperature alarm, over-temperature power off, startup self-diagnosis, self-tuning |
|||||
|
Vacuum Pump |
2L/S |
2L/S |
2L/S |
4L/S |
4L/S |
6L/S |
|
Interior Dimensions (mm) |
410*370*345 |
450x450x450 |
500x500x600 |
560x600x640 |
600x600x700 |
630x810x845 |
|
External Dimensions (mm) |
870*550*1285 |
920x630x1470 |
670x650x1630 |
1030x820x 1750 |
1070x800x 1850 |
1100x1000x 1850 |
|
Volume |
52L |
91L |
150L |
215L |
252L |
431L |
|
Standard Shelves |
2 |
3 |
||||
|
Power Supply Voltage |
220V/10A |
220V/15A |
220V/20A |
220V/25A |
380V/25A |
|
|
Power |
1.85KW |
2.65KW |
3.3KW |
3.8KW |
4.8KW |
7.5KW |
|
No. |
Name |
Parameters |
Reference Photo |
|
1 |
Independent Over-Temperature Limiter |
① Secondary protection against temperature overshoot and runaway |
|
|
2 |
Built-in Printer |
① Real-time printing |
|
|
3 |
RS485 Interface |
① Connect to micro printer, USB drive, or remote communication |
|
|
4 |
USB Port |
① Export historical operation data |
|
|
5 |
Inert Gas Inlet Valve |
① Introduce inert gas |
|
|
6 |
Secondary Filter | ① Filters condensed liquid molecules. |  |
