The light-controlled incubator is a high-precision, constant-temperature light simulation testing apparatus featuring refrigeration, heating, and light intensity control. Primarily employed for plant cultivation, breeding and seedling propagation, seed germination, floriculture, and insect rearing, it serves as essential equipment for biological genetic engineering, microbial cell and tissue culture, and the preservation of bacteria, fungi, and microorganisms. BOD determination in water analysis, and other constant-temperature testing applications. It is an essential piece of equipment for institutions engaged in constant-temperature and light-controlled production and research, including health and epidemic prevention, agriculture and forestry environmental protection, animal husbandry and breeding, and scientific research organisations.
1. The entire range comes standard with the PACHB-C1006-T three-in-one programmable temperature, humidity and illuminance controller. Featuring a power-on self-test function and PID logic operation, it automatically corrects temperature deviations based on calculation results to achieve more precise temperature control.
2. Choice of T4 anti-ageing fluorescent lamps or LED cold light sources, compatible with multiple lighting modes; Illumination levels are adjustable via multiple preset or stepless modes;
3. Core components—compressor and circulation fan—employ renowned brands. Utilises a health-conscious, environmentally friendly refrigerant. Features a classic compressor configuration with optional bypass solenoid valve functionality. Multiple defrosting methods are selectable, with customisable intervals and duration for the defrosting cycle;
4. Features power failure memory, door temperature control, and water level detection. Capable of scheduled start-up, timed shutdown, and automatic screen lock;
5. Imported low-noise forced-air fan with unique duct design ensures uniform air distribution within the chamber, guaranteeing temperature homogeneity;
6. Simulates day-night temperature and light variations through multi-stage programmable operation to meet diverse experimental requirements;
7. Inner chamber constructed from 304 stainless steel; outer casing from premium cold-rolled steel plate with electrostatic powder coating. Durable, corrosion-resistant finish offers acid resistance, easy cleaning, and permanent rust prevention;
8. Automatically monitors operational status. Upon exceeding set temperature limits, heating is automatically cut off with audible and visual alarms alerting operators to ensure uninterrupted experimentation;

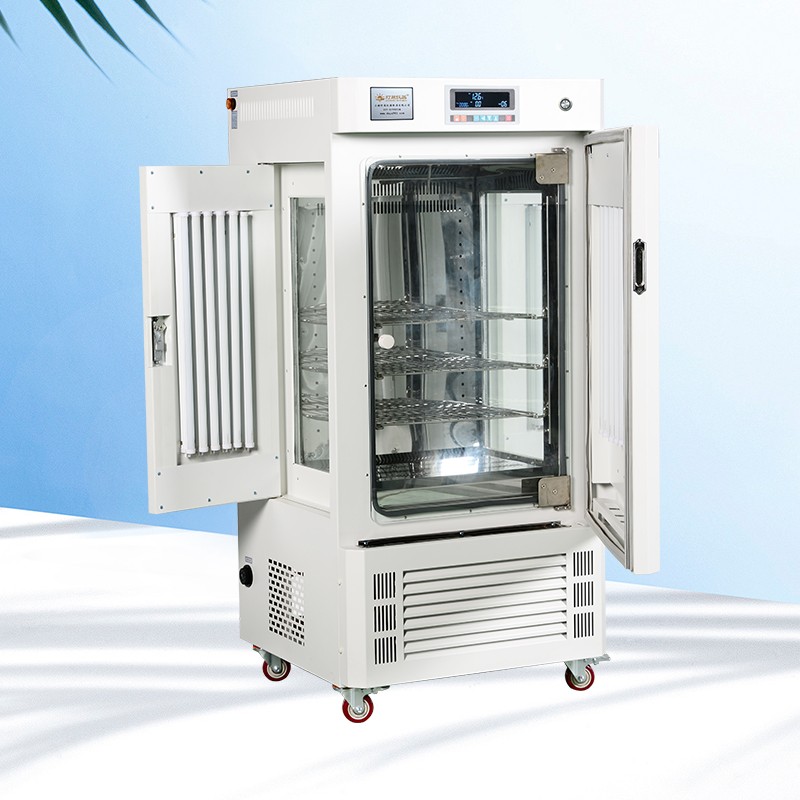

9. Features a double-door structure. Upon opening the outer door, the inner tempered glass door allows 360-degree unobstructed observation of the working chamber without affecting internal temperature;
10. Automatically saves parameters during emergencies and includes power-restoration functionality. Equipped with sensor self-diagnosis, over-temperature, and fault alarm capabilities;
11. Magnetic seal door for easy opening and excellent sealing. Adjustable shelves optimise space utilisation;
12. Optional touchscreen control system enabling: - Multi-level password access control - Historical data/curve storage, viewing and export - Real-time data/curve printing - Illuminator lifespan alerts - Alarm log storage and review - Chinese/English language switching - Gas concentration control (selectable) - PID adaptive light intensity regulation - UV irradiance control - Remote operation (optional)
| Model | MGC-150-Ⅱ | MGC-250-Ⅱ | MGC-300-Ⅱ | MGC-400-Ⅱ | MGC-800-Ⅱ |
| MGC-150-Ⅲ | MGC-250-Ⅲ | MGC-300-Ⅲ | MGC-400-Ⅲ | MGC-800-Ⅲ | |
| Temperature Range | Type II: Without illumination: 5–65°C With illumination: 10–65°C Type III: Without illumination: 0–65°C With illumination: 5–65°C |
||||
| Temperature Resolution | 0.1°C | ||||
| Temperature Fluctuation | ≤±0.5°C | ||||
| Illuminance | Type II: 0–25,000 lux adjustable Type III: 0–30,000 lux stepless adjustment | ||||
| Lighting Method | Type II: Four-sided illumination Type II: Vertical illumination | ||||
| Dimming Method | Type II: Multi-stage dimming Type III: Stepless dimming | ||||
| Temperature Control Method | Widescreen LCD digital display | ||||
| Cycle Method | Forced micro-airflow convection | ||||
| Compressor | Air-cooled hermetic compressor | ||||
| Refrigerant | Fluorocarbon-free, environmentally friendly | ||||
| Defrosting Method | Intelligent control with automatic defrosting | ||||
| Power Supply Voltage | AC220V/10A | AC220V/18A | |||
| Timing Range | Type II: 1 to 9999 minutes Type III: 9999 minutes × 30 × 99 |
||||
| Operating Mode | Fixed-value operation, timed operation, programmed operation | ||||
| Internal Chamber (nm) | 500x400x750 | 580x550x850 | 580z550x950 | 700x550x1140 | 965x580x1430 |
| External Dimensions (mm) | 700x640x1480 | 760x815x1550 | 820π780x1650 | 880π780z1810 | 1475x890x1780 |
| Volume | 150L | 271L | 303L | 439L | 800L |
| Gross/Net Weight (kg) | 186/165 | 222/200 | 242/222 | 289/256 | 403/368 |
| Standard Shelves | 2 | 3 | |||
| Rated Power | 1.5kw | 1.7kw | 1.8kw | 2kw | 3.5kw |
1. LY/T 1153-1994 Photoperiodic Germination Apparatus for Forest Tree Seeds – Test Methods (None)
2. LY/T 1152-1994 Photoperiodic Germination Apparatus for Forest Tree Seeds – Technical Specifications (None)
1. Over-temperature alarm
2. Overcurrent and overload protection
3. Rapid fuse
4. Earth leakage circuit breaker
1. Touchscreen programme control system
2. USB interface
3. Independent temperature limiter
4. Printer
5. Ultraviolet sterilisation system
6. Cold light source illumination panel
7. BOD socket
8. Network port and software
