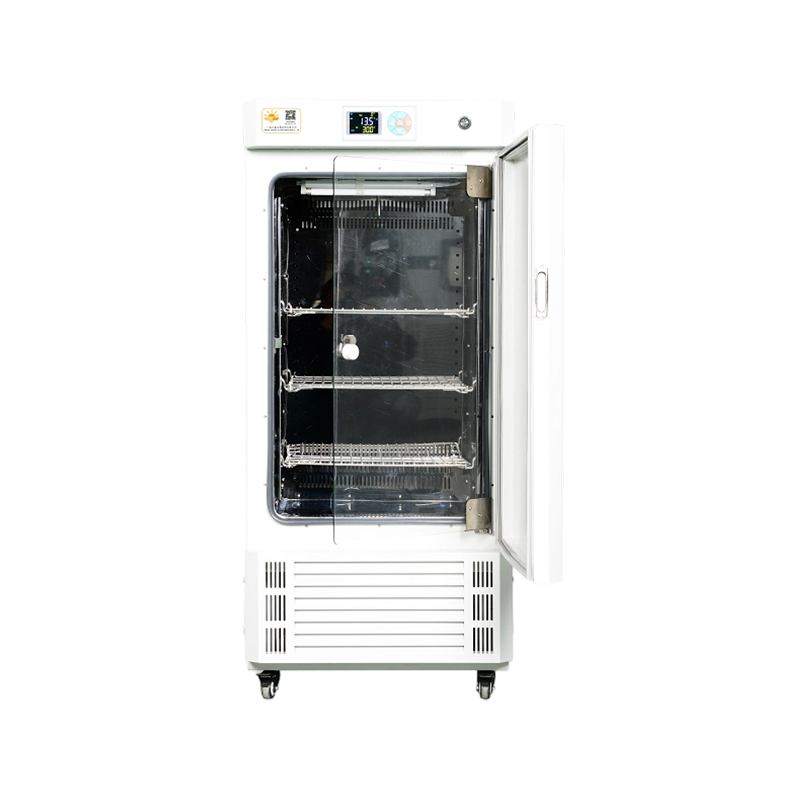

A biochemical incubator is a microorganism cultivation apparatus featuring a dual-temperature control system with both refrigeration and heating capabilities, capable of timed operation. It serves as vital experimental equipment in laboratories across sectors including public health and epidemic prevention, genetic engineering, environmental protection, pharmaceutical testing and manufacturing, animal husbandry and aquaculture, water analysis, BOD determination, plant cultivation, breeding experiments, and food science. It finds extensive application in low-temperature constant-temperature testing, cultivation trials, and environmental testing.
1. Microcomputer intelligent temperature control system, featuring standard self-diagnostic function upon start-up and PID logic operation capability, automatically correcting temperature deviations based on computational results;
2. 5.7-inch LCD screen controller with three-row digital display. Single screen shows constant temperature duration, operating temperature, set temperature, heating status, and over-temperature alarm, enabling real-time monitoring of experimental progress;
3. Core components—compressor and circulation fan—employ renowned brands. Refrigerant utilises healthy, environmentally friendly, fluorine-free refrigerant;
4. Circulation fan operates under automatic control, adjusting airflow velocity according to temperature levels. The refrigeration system employs a classic configuration proven stable through years of market testing, ensuring safety and reliability;
5. Inner chamber constructed from 304 stainless steel, outer casing from premium cold-rolled steel plate. Surface finished with electrostatic powder coating for durable, corrosion-resistant, acid-resistant, easy-clean properties that prevent rusting;
6. Automatically monitors operational status. Should temperatures exceed limits, heating is automatically cut off with audible and visual alarms alerting operators to ensure uninterrupted experimentation;
7. Double-door construction. Opening the outer door allows 360-degree observation of the chamber's experimental conditions through the inner tempered glass door without affecting internal temperatures;
8. Automatically saves parameters during emergencies with power-restoration capability, alongside sensor self-diagnosis and alarms for over-temperature and faults;
9. Magnetic seal door for effortless opening and superior sealing; adjustable shelves maximise space utilisation;
10. User-centric design includes standard interior lighting for convenient observation of experimental processes;
| Model | BIC-70 | BIC-100 | BIC-150 | BIC-250 | BIC-300 | BIC-500 | BIC-800 |
| BIC-70P | BIC-100P | BIC-150P | BIC-250P | BIC-300P | BIC-500P | BIC-800P | |
| Function | Type P: 30-stage programmable temperature control | ||||||
| Temperature Range | 5–65°C | ||||||
| Temperature Resolution | 0.1°C | ||||||
| Temperature Fluctuation | ≤±0.5°C | ||||||
| Temperature Uniformity | ±1°C | ||||||
| Temperature Control Method | 5.7-inch LCD widescreen digital display/programmable control (Type P, 30 stages) | ||||||
| Circulation Method | Forced convection | ||||||
| Compressor | Air-cooled hermetic compressor | ||||||
| Refrigerant | CFC-free environmentally friendly | ||||||
| Defrosting Method | Intelligent automated defrost control | ||||||
| Power Supply Voltage | AC220V/10A | ||||||
| Timing Range | 1–9999 minutes | ||||||
| Operating Mode | Fixed-value timed operation/programmed operation | ||||||
| Internal Chamber Dimensions (mm) | 450x320x500 | 450z380x590 | 480x390z780 | 580x500x850 | 580x540x950 | 700π700x1020 | 900x850x1050 |
| External Dimensions (mm) | 575x545x1070 | 575x605x1160 | 605x625x1350 | 705x725x1525 | 705x765x1640 | 825*925*1780 | 1030x1080x1850 |
| Volume | 72L | 100L | 146L | 246L | 297L | 500L | 803L |
| Gross/Net Weight (kg) | 105/80 | 113/88 | 130/105 | 186/156 | 195/165 | 275/225 | 378/323 |
| Standard Shelves | 2 | 3 | |||||
| Rated Power | 0.4KW | 0.5KW | 0.5KW | 0.7KY | 1KW | 1.5kw | 2kw |
1. GB/T 28851-2012 Technical Specifications for Biochemical Incubators
2. GB/T 32710.8-2016 Safety Specifications for Environmental Testing Instruments and Equipment — Part 8: Biochemical Incubators
3. SL 144.3-2008 Calibration Method for Biochemical Incubators
1. Over-temperature alarm
2. Overcurrent and overload protection
3. Fast-acting fuse
4. Earth leakage circuit breaker
1. Touchscreen Programmable Controller 2. LCD Programmable Controller 3. Printer 4. USB Interface 5. Network Port and Software
6. Independent Temperature Limiter 7. Ultraviolet Sterilisation System 8. Test Port 25/50mm 9. BOD Socket
