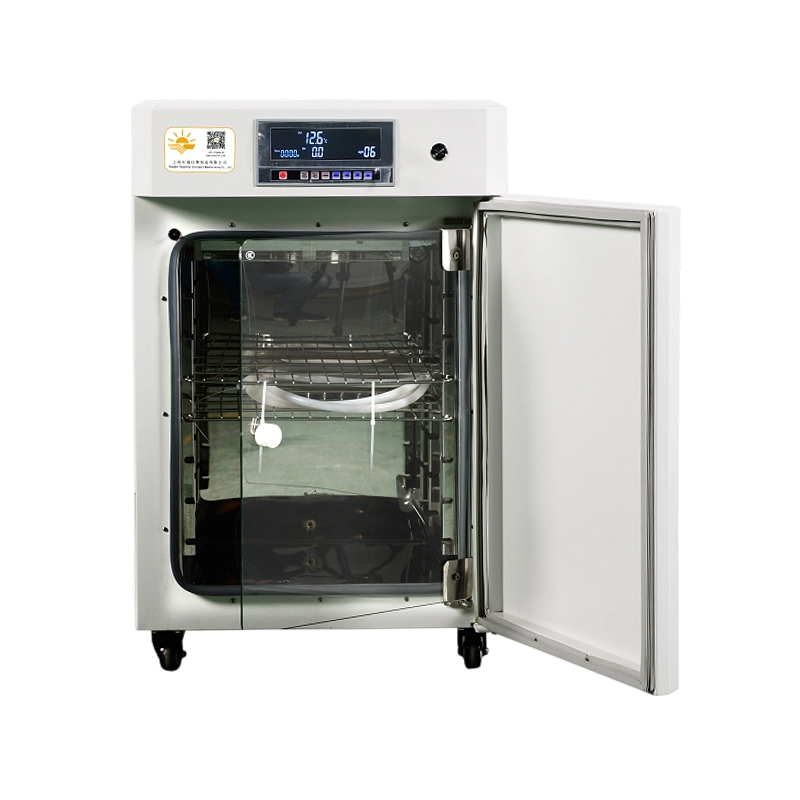

Carbon Dioxide Incubator

Carbon dioxide incubators are extensively employed in cell and tissue culture, as well as the cultivation of certain specialised microorganisms. They are commonly utilised in research fields including cell kinetics studies, the collection of mammalian cell secretions, investigations into the carcinogenic or toxic effects of various physical and chemical factors, antigen research and production, the cultivation of hybridoma cells for antibody production, in vitro fertilisation (IVF), stem cell research, tissue engineering, and drug screening.

PREV：Anaerobic Incubator
NEXT：Artificial Climate Incubator

Product Introduction
Selection Table
Industry Standards
Safety Protection
Optional Accessories

1. Integrated temperature and CO₂ intelligent controller with self-diagnostic function upon startup, featuring PID logic operation to automatically correct temperature deviations based on computational results;

2. 5.7-inch LCD screen controller with three-row digital display, simultaneously showing constant temperature duration, operating temperature, set temperature, heating status, and over-temperature alarm information for real-time experimental process monitoring;

3. Features far-infrared CO₂ sensors (IR) across all models for real-time CO₂ concentration measurement, achieving precise control;

4. Generates humidity via evaporation from an integrated humidification tray to maintain elevated chamber humidity, creating optimal conditions for cellular growth;

5. Standard-fit high-efficiency microbial filter purifies incoming air, removing 99.9% of particulates exceeding 0.3μm to prevent external contamination during operation;

6. All models incorporate ultraviolet sterilisation capability, eliminating 99.9% of adherent and airborne microorganisms;

7. Door temperature control effectively prevents condensation on the chamber's glass door, facilitating observation;

8. The inner chamber employs mirror-finished 304 stainless steel, while the outer shell utilises premium cold-rolled steel plate with an electrostatic powder coating. This durable finish offers corrosion resistance, acid resistance, ease of cleaning, and rust prevention;

9. Automatically monitors operational status. Should temperatures exceed limits, heating is automatically cut off, accompanied by audible and visual alarms to alert operators, ensuring uninterrupted experimentation;

10. Features a double-door structure. Upon opening the outer door, the inner tempered glass door allows 360-degree unobstructed observation of the chamber's experimental conditions without affecting internal temperature;

11. Automatically saves parameters during emergencies and includes a power-restoration function. Additionally incorporates sensor self-diagnosis, over-temperature, and fault alarm capabilities;

Model	BPM-50CH	BPN-80CH	BPH-160CH	BPH-270CH	BPH-50CT	BPH-80CT	BPH-160CT	BPH-270CT
Model	BPH-50CHR	BPH-80CHR	BPH-160CHR	BPH-270CHR	BPH-50CTR	BPN-80CTR	BPH-160CTR	BPH-270CWR
Temperature Control Method	Large-screen LCD controller
Temperature Range	RT+5~65°C
Temperature Resolution	0.1°C
Temperature Fluctuation	±0.5°C
Sterilisation	Ultraviolet
Door Temperature	Observation window anti-fogging
Filter	Filtration efficiency >99.9%
Humidification	Water tray natural evaporation
Heating Method	Air-cushioned				Water-jacketed
CO₂ Control Method	CH/CW denotes domestically produced far-infrared sensors, while CHE/CWR denotes imported infrared sensors.
CO₂ Control Range	0-20%
Internal Cavity Dimensions (mm)	345x355x410	400z400x500	500z500x650	600z600750	345x355x410	400x400x500	500x500:650	600:600x750
External Dimensions (mm)	475x460x695	530z505x785	630x605x935	730z705x1035	475x460z695	530x505x785	630x605x935	730x705x1035
Internal Volume	50L	80L	162L	270L	50L	80L	162L	270L
Gross Weight/Net Weight	59/44	71/56	94/74	144/119	64/49	77/62	102/82	154/128
Rated Power	0.25kw	0.35kw	0.55KW	0.75KW	0.5KW	0.75RW	11ew	1.2kw
Power Supply Voltage	AC220v/10A
Ambient Temperature	5~35℃

1. YY 1621-2018 Medical Carbon Dioxide Incubator

2. T/GDCKCJH 050-2021 Performance Requirements and Test Methods for Carbon Dioxide Incubators

3. GB/T 16293-2010 Test Methods for Airborne Microorganisms in Pharmaceutical Industry Cleanrooms (Zones)

4. GB/T 19493-2004 Terminology for Environmental Pollution Prevention and Control Equipment

1. Over-temperature alarm
2. Earth leakage protection
3. Rapid fuse
4. Earthing protection
5. Low water level alarm (water jacket type)

1. Colour touchscreen controller
2. USB interface
3. Independent temperature limiter
4. Printer
5. Pressure reducing valve
