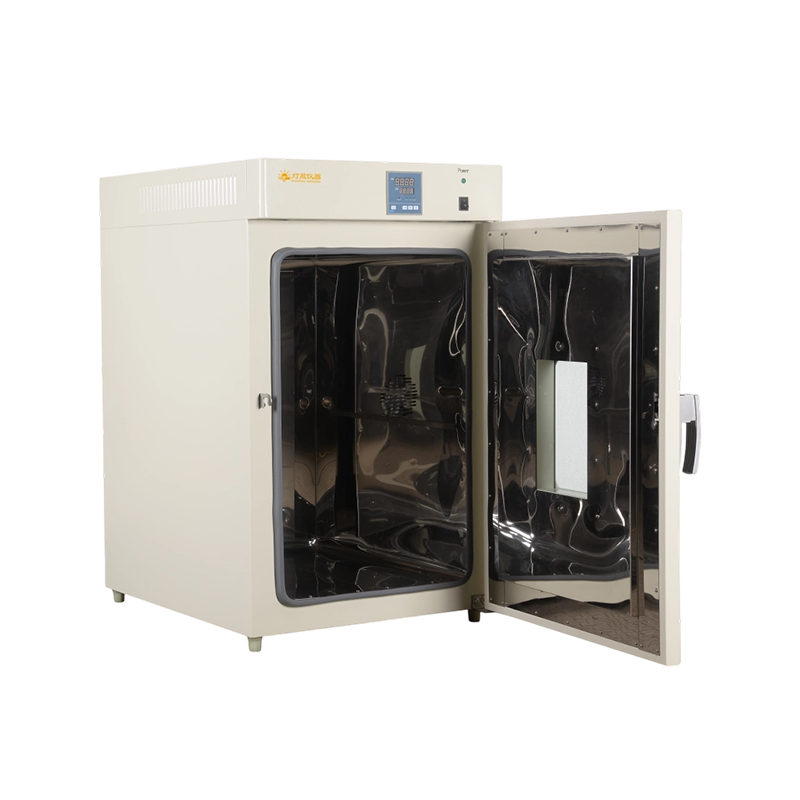

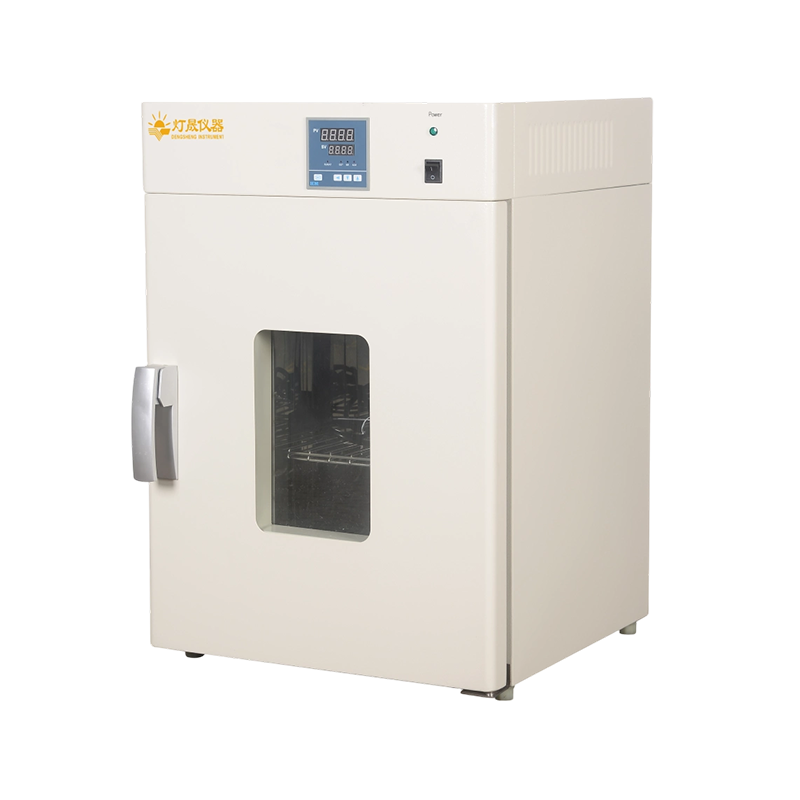

Dual-purpose drying and baking cabinets are suitable for drying, baking, wax melting, heat treatment, and sterilisation in universities, enterprises, and research institutes. They may also be employed in healthcare, pharmaceuticals, biology, agriculture, scientific research, and food industries for storing cultures and cultivating microorganisms.
1. Microprocessor-integrated intelligent temperature control system with PID logic functionality ensures precise and reliable temperature regulation.
2. Dual-row high-brightness digital display on the controller screen simultaneously shows operating temperature and setpoint temperature.
3. Branded circulation fan forces thermal medium circulation within the chamber, guaranteeing uniform temperature distribution.
4. Modular control system design ensures safe, stable and efficient operation.
5. Automatic parameter retention during emergencies with power-up recovery function. Features sensor self-diagnosis, over-temperature and fault alarm capabilities.
6. Inner chamber constructed from 304 stainless steel; outer casing from premium cold-rolled steel plate with electrostatic powder coating. Durable, fade-resistant finish.
7. Proprietary air duct design effortlessly accommodates both drying and cultivation functions.
8. Dual-purpose functionality conserves limited laboratory space.
9. Adjustable shelf height maximises spatial utilisation.
| Model | DRP-15 | DRP-25 | DRP-55 | DRP-75 | DRP-105 | DRP-200 |
| Temperature Range | Incubator RT+10~65℃/Drying Oven RT+10~200℃ | |||||
| Temperature Resolution | 0.1℃ | |||||
| Temperature Fluctuation | Incubator ≤±0.5℃/Drying Oven ≤±1℃ | |||||
| Temperature Control Method | Microcomputer Intelligent PID Calculation | |||||
| Circulation Method | Forced Convection | |||||
| Power Supply Voltage | AC220V/50Hz | |||||
| Timing Range | 1–9999 min | |||||
| Operating Mode | Constant value operation Timed operation | |||||
| Ambient Operating Temperature | 5~35℃ | |||||
| Internal Chamber (W × D × H in m) | 250x260x250 | 340x330x320 | 420x350x390 | 450x400z450 | 550x450x550 | 600x595x650 |
| External Dimensions (W × D × H in m) | 535x440x430 | 625x540z500 | 705x610x530 | 735z610x630 | 835x670x730 | 880x800x830 |
| Volume | 16L | 35L | 55L | 80L | 135L | 230L |
| Standard Shelves | 2 | |||||
| Shelf Load Capacity | 10KG | |||||
| Rated Power | 0.5KY | 0.75KW | 1KW | 1.5KW | 2KW | 2.4KW |
1. GB/T 30435-2013 Electric Heating Drying Ovens and Electric Heating Forced-Air Drying Ovens
2. YY 0027-1990 Electric Heating Constant-Temperature Incubators
1. Over-temperature alarm
2. Earth leakage protection
3. Rapid fuse
4. Earthing protection
1. Intelligent Programmable Controller
2. Independent Temperature Limiter
3. Printer
4. 485/USB
