With a deep commitment to the global market, Shanghai Dengsheng Instrument has earned international acclaim for its quality.

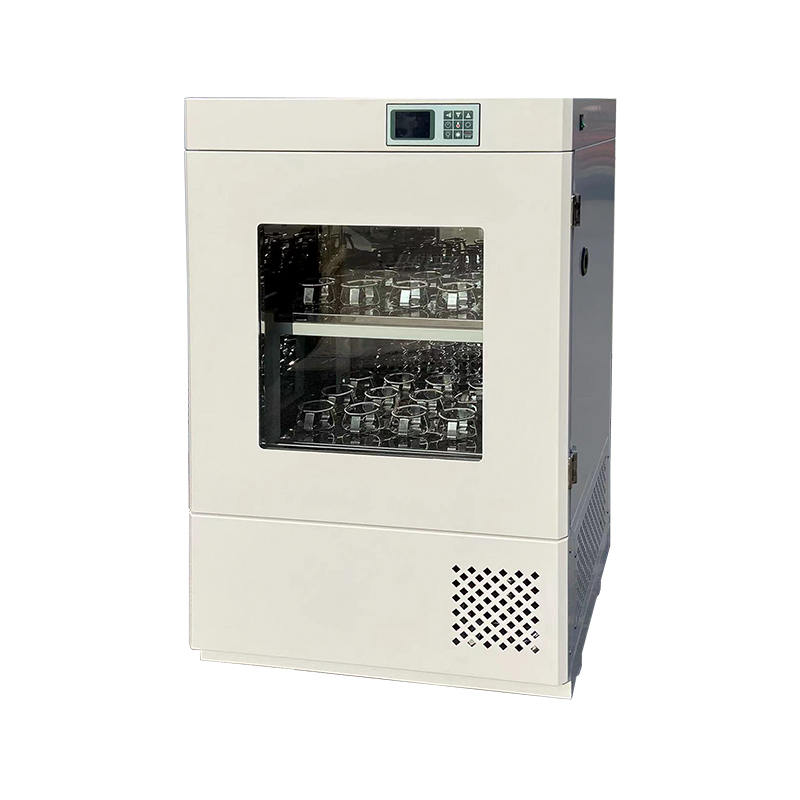

1. 1.5-inch touchscreen display showing parameters such as temperature, rotation speed, and time;
2. Integrates a constant temperature incubator and shaker into one unit, saving space, reducing footprint, and offering multiple functions with less investment;
3. Tilted, user-friendly control panel with a large backlit LCD screen for excellent visual effects;
4. Personalized program design allows for pre-setting up to ten programmable segments and the option to select whether to loop the program, enabling automatic operation of temperature, rotation speed, and time;
5. Multiple timing modes: 1. Timing units can be freely switched between minutes and hours; 2. Two timing modes: timing starts upon power-on or after reaching a constant temperature;
6. Large viewing window provides a clear view of the entire working status;
7. Shaking direction can be switched between forward and reverse;
8. Silent design, electrostatic spray-coated casing, luxurious and aesthetically pleasing appearance;
9. DC brushless motor design, wide speed range, constant torque, constant speed, no carbon brushes, maintenance-free;
10. Mirror-polished stainless steel inner lining, stainless steel electropolished tray, springs, and flask clamps. The instrument is corrosion-resistant;
11. Flexible and convenient, the tray and clamps are detachable;
12. Temperature control can be turned off, controlling only the rotation speed; or only temperature can be controlled, with the rotation speed turned off; multiple modes can be freely switched.
|
Model |
DSL-YF180A |
DSL-YF180B |
DSL-YF280A |
DSL-YF280B |
DSL-YF550A |
DSL-YF550B |
|
Temperature Control Range |
4℃~60℃ |
RT+5℃~60℃ |
4℃~60℃ |
RT+5℃~60℃ |
4℃~60℃ |
RT+5℃~60℃ |
|
Display Method |
LCD |
|||||
|
Temperature Resolution |
±0.1℃ |
|||||
|
Temperature Fluctuation |
±0.5℃ |
|||||
|
Temperature Uniformity |
±1℃ |
|||||
|
Timer Range |
0~999 Hour |
|||||
|
Oscillation Amplitude |
φ26mm |
φ35mm |
||||
|
Rotation Frequency |
40~300rpm |
60~280rpm |
||||
|
Speed Accuracy |
±1rpm |
|||||
|
Mixing Mode |
Rotary |
Reciprocating |
Rotary |
Reciprocating |
Rotary |
Reciprocating |
|
TrayNumber of Tray |
2 |
|||||
|
Lighting Method |
UV/Fluorescence (choose one) |
|||||
|
Tray Dimensions |
500mm×350mm |
740mm×460m |
970mm×560mm |
|||
|
Volume |
180L |
280L |
550L |
|||
|
Interior Dimensions(W*D*H) |
660mm×440mm×650mm |
840mm×520mm×640mm |
1080mm×630mm×805mm |
|||
|
Exterior Dimensions(W*D*H) |
700mm×560mm×1260mm |
950mm×700mm×1260mm |
1200mm×800mm×1500mm |
|||
|
Default Factory Settings |
250ml×24 tubes |
250mlx35 tubes or 500ml×24 tubes |
250ml×45 tubes or 500ml×36 tubes |
|||
|
Maximum Capacity |
100ml×48 tubes or 250ml×24 tubes or 500ml×24 tubes |
250mlx70 tubes or 500ml×48 tubes or 1000ml×24 tubes |
250ml×90 tubes or500ml×74 tubes |
|||
|
Power |
550W |
380W |
550W |
750W |
960W |
750W |
|
Net Weight |
185KG |
165KG |
240KG |
220KG |
380KG |
355KG |
|
Power Supply Voltage |
AC220V~240V±10% 50~60HZ |
|||||
