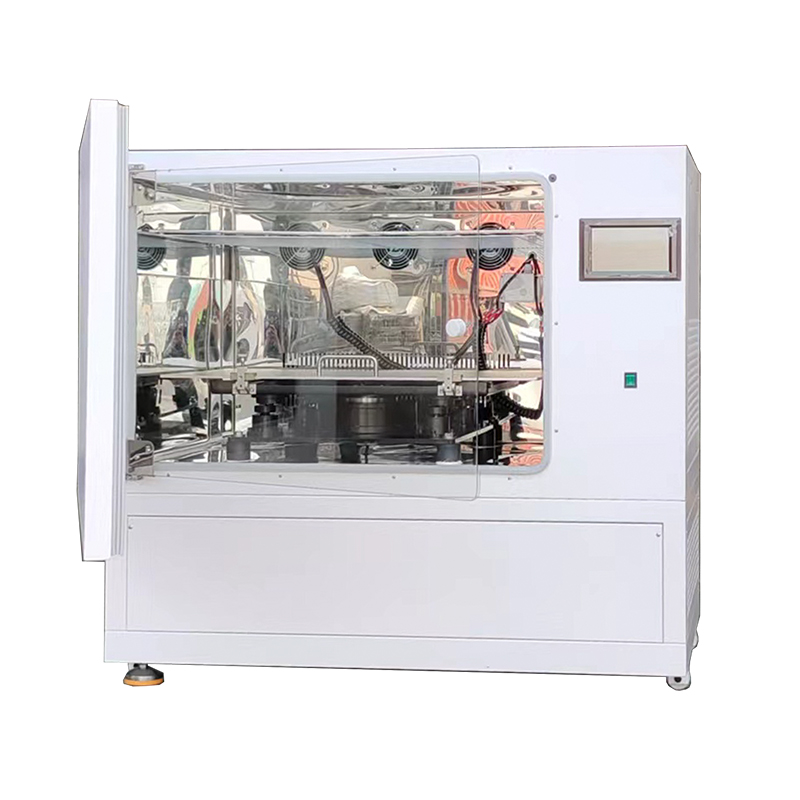

Mirror-polished stainless steel interior design Illuminated Shaking Incubator

1. The inner chamber is made of 304 stainless steel;
2. 5-inch touch screen display for temperature, speed, time, and other parameters;
3. Stable rotation speed and excellent temperature control;
4. Combines a constant temperature incubator and shaker into one unit, saving space, reducing footprint, and offering multiple functions with less investment;
5. Tilted, user-friendly control panel with a large backlit LCD screen for excellent visual effect;
6. Personalized program design, allowing for pre-setting up to ten programmable segments and the option to loop the program, enabling automatic operation of temperature, speed, and time;
7. Diverse timing modes: 1. Time units can be freely switched between minutes and hours; 2. Two timing modes: timing starts upon power-on or after reaching a constant temperature;
8. Large viewing window provides a clear view of the entire working status;
9. Shaking direction can be switched between forward and reverse;
10. Silent design, electrostatic spray-coated casing, luxurious and aesthetically pleasing appearance;
11. DC brushless motor design, wide speed range, constant torque, constant speed, no carbon brushes, and maintenance-free;
12. Mirror-polished stainless steel inner lining, stainless steel electropolished tray, springs, and flask clamps. The instrument is corrosion-resistant;
13. Flexible and convenient, the tray and clamps are detachable;
14. Temperature control can be turned off, controlling only the rotation speed; or only temperature can be controlled, with the rotation speed turned off; multiple modes can be freely switched;
15. Built-in top lighting, using a dedicated biological light source with good spectral characteristics, high intensity, and low heat generation, suitable for experimental requirements;
16. Built-in UV sterilization system.

PREV：No previous article
NEXT：Design of long-life AC induction motors Carbon Dioxide Shaking Incubator

Instrument Selling Points
Structural Features
Control System
Selection Table
Optional Accessories

Model	DSL-YG180A		DSL-YG180B		DSL-YG280A		DSL-YG280B		DSL-YG550A		DSL-YG550B
Temperature Control Range	4~60℃		RT+5～60℃		4～60℃		RT+5～60℃		4～60℃		RT+5～60℃
Display Method	LCD
Temperature Resolution	±0.1℃
Temperature Fluctuation	±0.5℃
Temperature Uniformity	±1℃
Light Source	LED cold light source
Illuminance	0～30000LX
Illuminance Deviation	±500LX
Lighting Mode	Vertical lighting
Timer Range	0~999 Hour
Oscillation Amplitude	φ26mm							φ35mm
Rotation Frequency	40~300rpm							60～280rpm
Speed Accuracy	±1rpm
Mixing Mode	Rotary	Reciprocating		Rotary		Reciprocating		Rotary		Reciprocating
Number of Tray	2
Lighting Method	UV/Fluorescence (choose one)
Tray Dimensions	500mm×350mm			740mm×460m				970mm×560mm
Volume	180L			280L				550L
Interior Dimensions（WDH）	660mm×440mm×650mm			840mm×520mm×640mm				1080mm×630mm×805mm
Exterior Dimensions（WDH）	700mm×560mm×1260mm			950mm×700mm×1260mm				1200mm×800mm×1500mm
Default Factory Settings	250ml×24 tubes			250mlx35 tubes or 500ml×24 tubes				250ml×45 tubes or 500ml×36 tubes
Maximum Capacity	100ml×48 tubes or 250ml×24 tubes or 500ml×24 tubes			250mlx70 tubes or 500ml×48 tubes or 1000ml×24 tubes				250ml×90 tubes or500ml×74 tubes
Power	950W	780W		1030W		1400W		1520W		1150W
Net Weight	185KG	165KG		240KG		215KG		380KG		350KG
Power Supply Voltage	AC220V~240V±10% 50～60HZ
