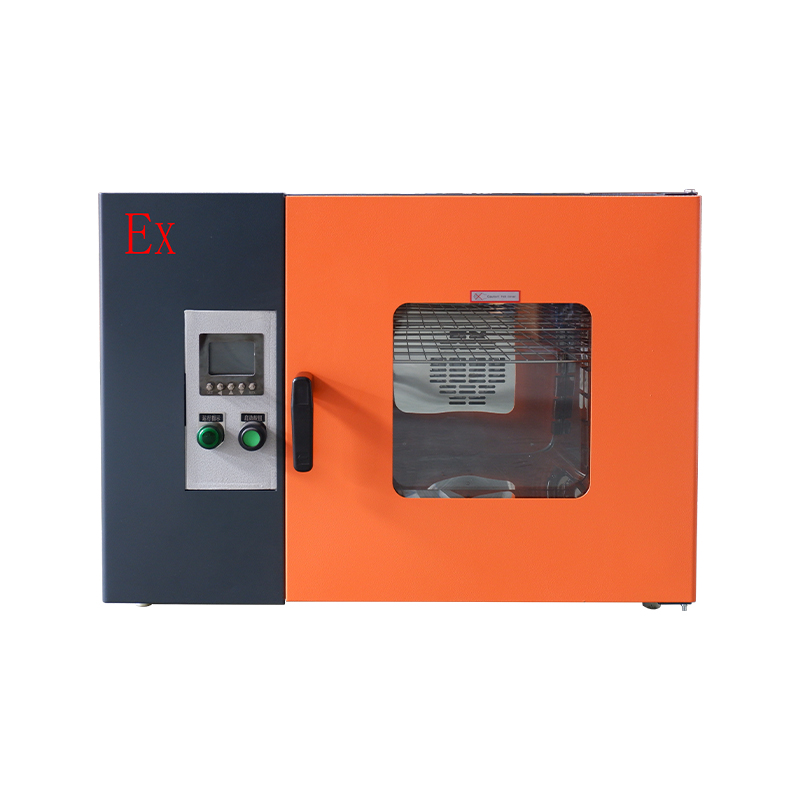

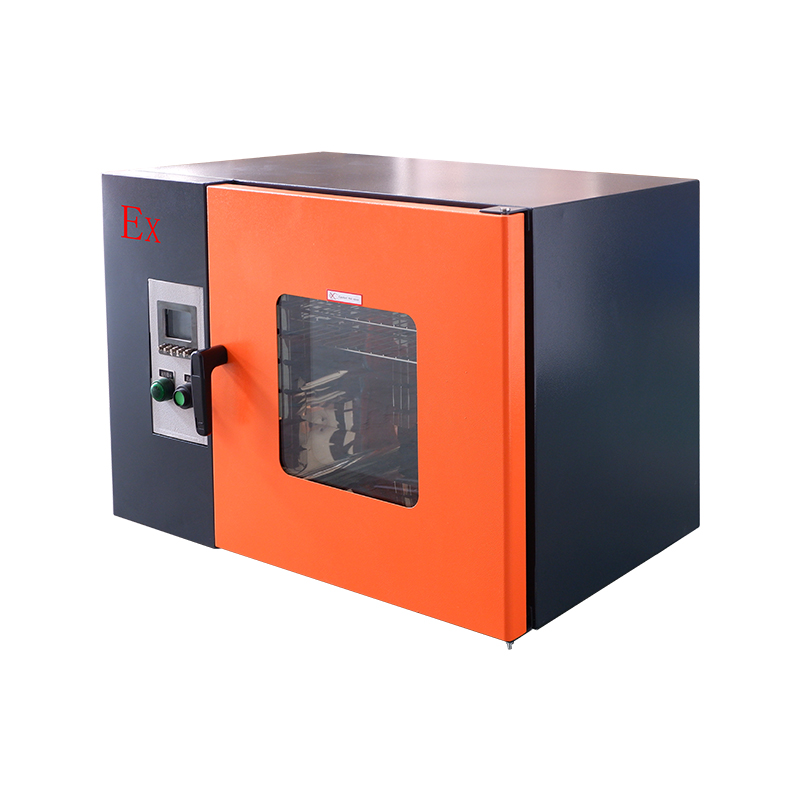

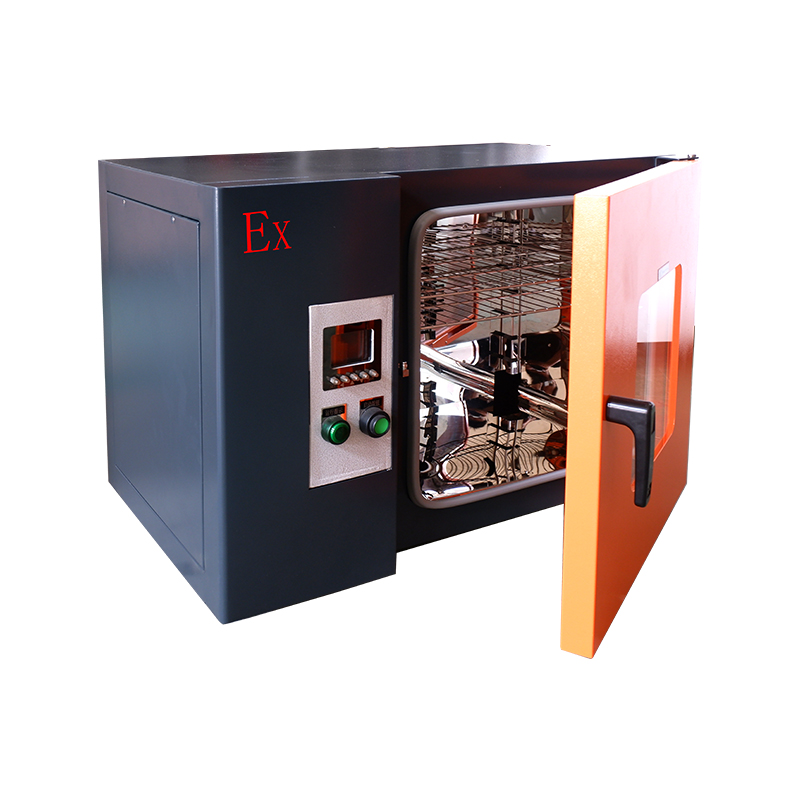

The explosion-proof forced-air drying oven is a highly reliable heat treatment equipment designed specifically for high-risk working conditions. It integrates explosion-proof technology, precise temperature control, and a forced convection circulation system, providing safety assurance for industrial production and material heat treatment. The oven body features a steel plate and multiple explosion-proof structural designs. The circulation fan, driven by a high-efficiency explosion-proof motor, creates a uniform and stable hot air flow inside the chamber, ensuring temperature field consistency and completely eliminating the possibility of electrostatic discharge and contact with flammable gases, thus preventing explosion risks at the source. It is primarily used in industries such as petrochemicals, military and nuclear industries, aerospace, pharmaceuticals, and paints and coatings.
① Complies with the national GBT 3836.1-2021 explosion-proof standard, featuring a dual-core explosion-proof system combining flameproof and intrinsically safe technologies. Key components utilize a spark-free design to ensure active safety, completely mitigating risks at the energy source and creating a safe production environment;
② Equipped with cutting-edge explosion-proof technology, certified to the rigorous national IIB T1-T6 level. This advanced explosion-proof system can handle various complex and high-risk gas conditions, ensuring stable and safe operation in diverse hazardous gas environments;
③ Utilizes a microcomputer-integrated intelligent temperature control system with a built-in microcomputer chip that collects temperature change data in real time and dynamically adjusts PID parameters (such as response speed and overshoot suppression), ensuring temperature fluctuations are less than... ±1℃, offering advantages such as smaller temperature overshoot, faster stabilization time, and better temperature control accuracy compared to traditional PID control methods;
④ Built-in threshold warning matrix, with safety functions such as over-temperature alarm, over-temperature power-off, and power-on self-diagnosis; features intelligent functions such as free switching between Celsius and Fahrenheit, and active deviation correction;
⑤ Maximum timing of 9999, with freely switchable timing units of minutes/hours; timing modes can be set to power-on timing, constant temperature timing, or continuous operation without timing;
⑥ Integrated design of the working chamber and vacuum pump, with a standard explosion-proof vacuum pump. This design eliminates cumbersome external connection pipelines and assembly steps, truly achieving a plug-and-play experience (standard explosion-proof plug);
⑦ Structural materials and insulation: The exterior is made of cold-rolled steel plate with electrostatic powder coating, and the interior is made of brushed stainless steel. The internal corners are rounded for easy cleaning, combining durability and cleanliness; a thickened flame-retardant fiberglass insulation layer significantly reduces heat loss, reducing energy consumption by more than 30% compared to traditional equipment;
⑧ Unique micro-pressure dehumidification system, with a rear automatic intake and exhaust device, intelligently adjusting the humidity and pressure inside the chamber to ensure drying quality and achieve intelligent unattended operation;
⑨ Features real-time fault code display and automatic temperature correction function, facilitating quick troubleshooting. Potential operating risks can be eliminated at any time based on the fault codes displayed on the screen, making maintenance simple;
⑩ Our company provides a comprehensive after-sales service network covering most areas of the country, ensuring worry-free use for users (Note: excluding a very few remote towns);
⑪ Provides multi-faceted free technical services, including video, telephone, and online video tutorials, intuitively demonstrating equipment performance and operation methods, helping users quickly master operation methods and troubleshooting.
Safety Features:
① Comprehensive safety protection design, providing triple safety protection for personnel, samples, and equipment;
② Safety functions include: active protection, intelligent early warning, spark-free components, active deviation correction, and passive protection.
① Outer Shell Material: Made of selected high-quality cold-rolled steel plate (Q235), precisely formed by CNC machining. The surface is specially treated with phosphating and anti-static powder coating, creating a robust shell that is anti-static, corrosion-resistant, and scratch-resistant, ensuring lasting quality;
② Working Chamber: Made of thickened (3mm) 304 stainless steel, possessing excellent high-temperature stability and corrosion resistance, with a smooth surface for easy cleaning;
③ Observation Window: Equipped with a high-strength double-layer tempered glass observation window, providing clear visibility of material changes during operation, ensuring safe and clear observation;
④ Circulation System: Utilizes a powerful explosion-proof turbine fan and a scientifically designed air duct to achieve high-speed hot air circulation, ensuring excellent temperature uniformity inside the working chamber, preventing localized overheating, and significantly improving drying efficiency and processing consistency.
⑤ Equipped with multiple safety mechanisms such as over-temperature protection and overload protection, ensuring long-term stable operation of the equipment, suitable for frequent use in scientific research.
⑥ Insulation Layer: The space between the outer shell and the working chamber is filled with 50mm thick high-purity ceramic fiber cotton (Al₂O₃), providing superior heat insulation, greatly reducing heat loss, ensuring constant temperature, and achieving high energy efficiency;
⑦ Door Seal: Can withstand thermal oxidative aging for a long time, maintaining elasticity and sealing integrity, effectively preventing heat loss and ensuring the stability of the working chamber temperature;
⑧ Heating Tube: Made of stainless steel and high-resistance electric heating alloy wire, with a thermal efficiency exceeding 95%, integrated molding and sealing treatment, good insulation, corrosion resistance, and oxidation resistance, suitable for high-temperature, humid, and corrosive industrial environments, with a long lifespan and stable performance;
⑨ Shelves: Standard configuration includes high-corrosion-resistant chrome-plated mesh shelves with surface hardening treatment, oxidation resistance, acid and alkali resistance, and stable load-bearing capacity; supports flexible customization of various materials and hole types such as stainless steel, alloy, and Teflon, perfectly matching demanding scenarios in pharmaceuticals, electronics, chemicals, and petroleum industries, providing precise and reliable load-bearing solutions for high-end drying processes.
⑩ Some large-capacity products are equipped with high-performance silent universal wheels, combining flexible movement and stable positioning, suitable for precision laboratories and high-end industrial environments, showcasing detailed technology and user-friendly design.
① Color LCD Screen Controller: Equipped with a color screen and touch buttons, displaying parameters such as set temperature, operating temperature, constant temperature time, and fault information on a single screen; integrates a microprocessor intelligent temperature control system with dynamic PID parameter adjustment, offering fast response speed and temperature overshoot suppression;
② Multiple Timing Modes: 1. Timing units can be freely switched between minutes and hours; 2. Two timing modes: timing starts upon power-on and timing starts after reaching the constant temperature;
③ Upgraded sound and light alarm environmental scanning microcomputer chip with stable data processing capabilities;
④ Features include over-temperature alarm, over-temperature heating cutoff, timed shutdown, power-on recovery, parameter memory, temperature correction, and self-tuning;
⑤ Power Failure Recovery Function: After a sudden power outage and subsequent power restoration, the device can automatically resume operation according to the original settings;
⑥ Self-tuning: When the temperature control accuracy is affected by changes in ambient temperature, self-tuning can be performed to improve temperature accuracy;
⑦ Multiple Modes: Switching between fixed-value mode, timed mode, and long-term mode.
|
Model DEP- |
9030EX-3 |
9050EX-3 |
9070EX-3 |
9140EX-3 |
9240EX-3 |
9420EX-3 |
9640EX-6 |
9960EX-6 |
9100EX-6 |
|
Structure |
Benchtop |
Vertical |
|||||||
|
Explosion-proof Rating |
IIB T1～T6 |
||||||||
|
Controller |
LCD digital display |
||||||||
|
Controller Range |
PT100 Platinum RTD |
||||||||
|
Temperature Range |
RT+10～250℃ |
||||||||
|
Temperature Resolution |
0.1℃ |
||||||||
|
Temperature Fluctuation |
≤±1℃ |
||||||||
|
Temperature Uniformity |
±2%℃ |
||||||||
|
Heating Rate |
RT～200℃≤70min |
||||||||
|
Timer Range |
0～9999min/h |
||||||||
|
Timing Mode |
Power-on timer / Constant temperature timer / Long-term operation |
||||||||
|
Timing Direction |
Count-up/Count-down |
||||||||
|
Timing Unit |
Minute/Hour |
||||||||
|
Power Supply Voltage |
AC220V/50Hz |
||||||||
|
Security Protection |
Over-temperature alarm, over-temperature power cut-off, power-on self-diagnosis, deviation correction. |
||||||||
|
Interior Dimensions (mm) |
340*330* 320 |
420*350* 350 |
450*400* 450 |
550*450* 550 |
600*600* 650 |
600*550* 1300 |
800*800* 1000 |
1000*600* 1600 |
1000*1000*1000 |
|
External Dimensions (mm) |
775*620* 500 |
855*690* 530 |
885*690* 630 |
985*750* 730 |
1030*890* 830 |
780*950*1900 |
980*1180*1650 |
1140*980*2150 |
1140*1380*1550 |
|
VolumeL |
36 |
27 |
81 |
136 |
234 |
429 |
640 |
960 |
1000 |
|
Power (kW) |
0.85 |
0.85 |
1 |
1.5 |
2 |
3 |
4 |
6 |
6 |
|
Standard Shelves |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
|
Gross/Net weightKG |
52/40 |
63/50 |
69/55 |
91/76 |
116/91 |
195/172 |
275/251 |
328/275 |
334/298 |
|
No. |
Name |
Parameters |
Reference Photo |
|
1 |
Explosion-Proof 7-inch Touchscreen Controller | ① Program: 100 groups, 100 segments per group ② Each segment includes: temperature, timer (0-9999 min/h) ③ Three levels of access: Administrator, Engineer, Operator ④ Scheduled start ⑤ English/Chinese language switching |
 |
|
2 |
Explosion-Proof 5-inch Touchscreen Controller | ① Program: 100 groups, 100 segments per group ② Each segment includes: temperature, timer (0-9999 min/h) ③ Three levels of access: Administrator, Engineer, Operator ④ Scheduled start ⑤ English/Chinese language switching |
 |
|
3 |
30-segment Program Controller | ① 30-segment program control for heating/cooling ② Timer range per segment: 0~9999 min/h ③ Timing mode: Count-up / Count-down ④ PT100 platinum resistance sensor ⑤ Screen lock ⑥ °C / °F switchable |
 |
|
4 |
Independent Over-Temperature Limiter | ① Secondary protection against temperature overshoot and runaway ② Safeguards equipment, samples, and personnel in case of main controller failure or malfunction |
 |
|
5 |
Inert Gas Inlet Valve | ① Introduce inert gas ② Stainless steel ball valve with manual flow adjustment |
 |
|
6 |
Gas Flow Meter | ① 0～10 L/min ② 0～30 L/min |
 |
|
7 |
Test Port | ① Material: Stainless steel + bakelite ② Specification: 30mm / 50mm ③ Includes inner and outer covers |
 |
|
8 |
USB Port |
① Export historical operation data |
|
|
9 |
RS485 Interface |
① Connect to micro printer, USB drive, or remote communication |
|
