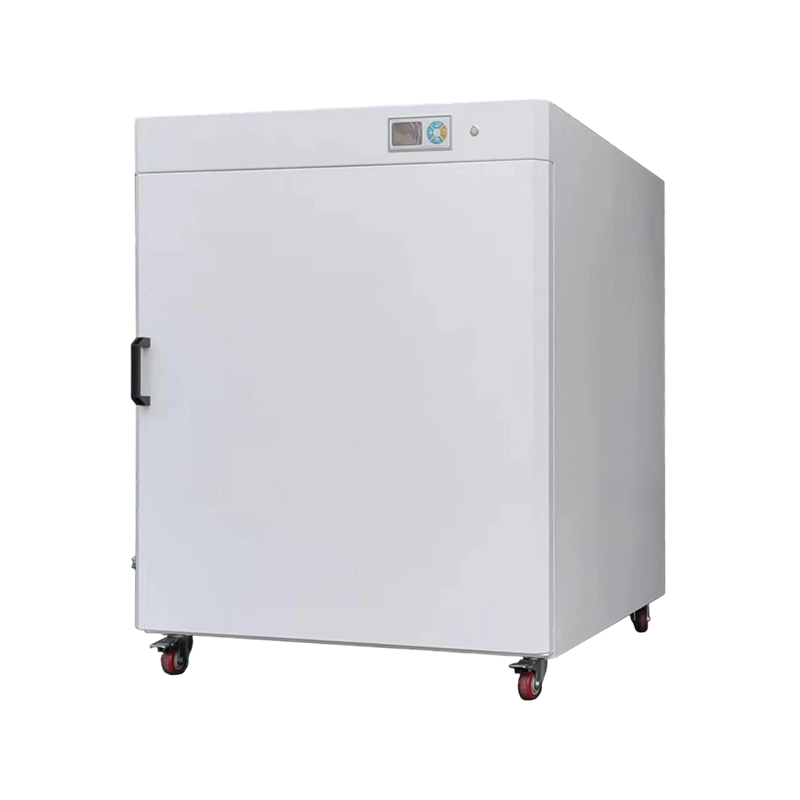

Ventilation Aging Test Chamber

Ventilated ageing test chambers are primarily employed in the rubber, plastics, electronics, aerospace, new energy, cable, and advanced materials industries. They conduct high-temperature ageing tests on products from these sectors, measuring post-test indicators such as tensile strength, elongation, shrinkage rate, and stability. Test results inform subsequent product optimisation processes.

PREV：Periodic Immersion Corrosion Test Chamber
NEXT：UV Aging Test Chamber

Product Introduction
Selection Table
Industry Standards
Safety Protection
Optional Accessories

1. Features a microprocessor-integrated intelligent temperature control system with a built-in PID logic module, offering constant current, constant voltage, constant resistance, constant power, and combined load functions to achieve excellent response speed and control precision;

2. LCD display interface ensures reliable temperature regulation, simultaneously showing set temperature, operating temperature, setpoint, constant temperature duration, operational status, fault codes, and other information;

3. The controller incorporates self-diagnostic functions upon startup, timed operation capabilities, and over-temperature alarm functionality, ensuring safe, stable, and efficient operation;

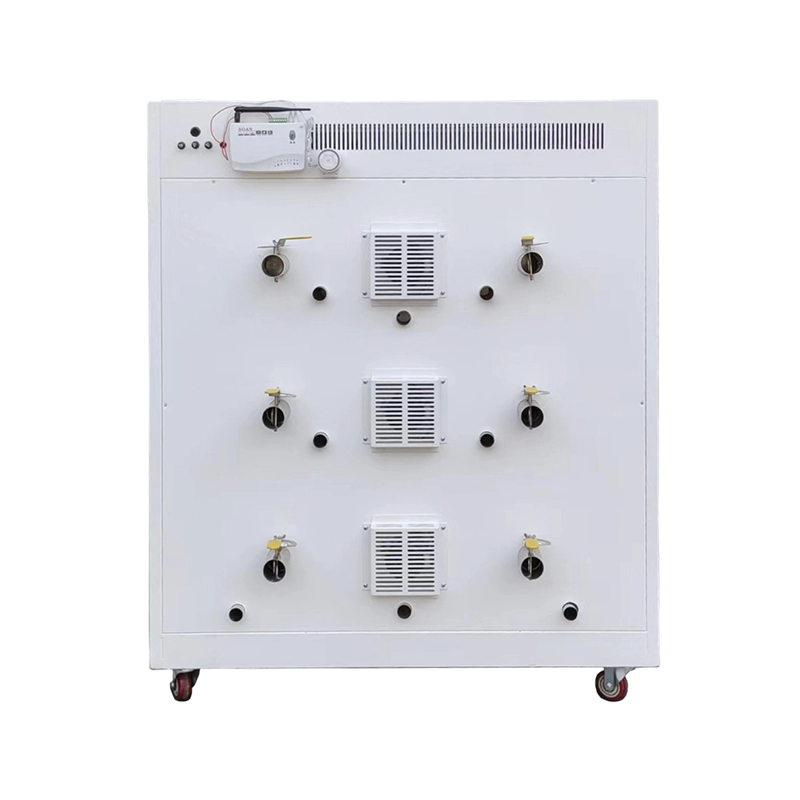

4. Utilises a proprietary air duct circulation system, supplemented by an adjustable exhaust valve, to automatically vent gases generated during the vulcanisation process within the chamber while drawing in fresh air;

5. Air exchange volume adjusts dynamically according to smoke generation during vulcanisation, optimising curing outcomes and enhancing product yield rates;

6. Extended flanged exhaust valve directs vulcanisation fumes through stainless steel bellows for direct outdoor discharge or ventilation ducting, preventing indoor air contamination;

7. Low-noise fan with horizontal airflow configuration significantly enhances ventilation efficiency, thereby improving temperature uniformity;

8. Proprietary ductwork design forms an efficient hot-air circulation system, directing dry heated air directly over vulcanising components for accelerated processing;

9. Inner chamber constructed from SUS304 stainless steel (Baosteel), outer casing from premium cold-rolled steel plate (Ansteel), with electrostatic powder coating for durable, non-fading finish;

10. SUS304 stainless steel dry heating tubes (incorporating imported nickel-chromium wire) extend heating element lifespan by 3-5 times compared to conventional heating tubes;

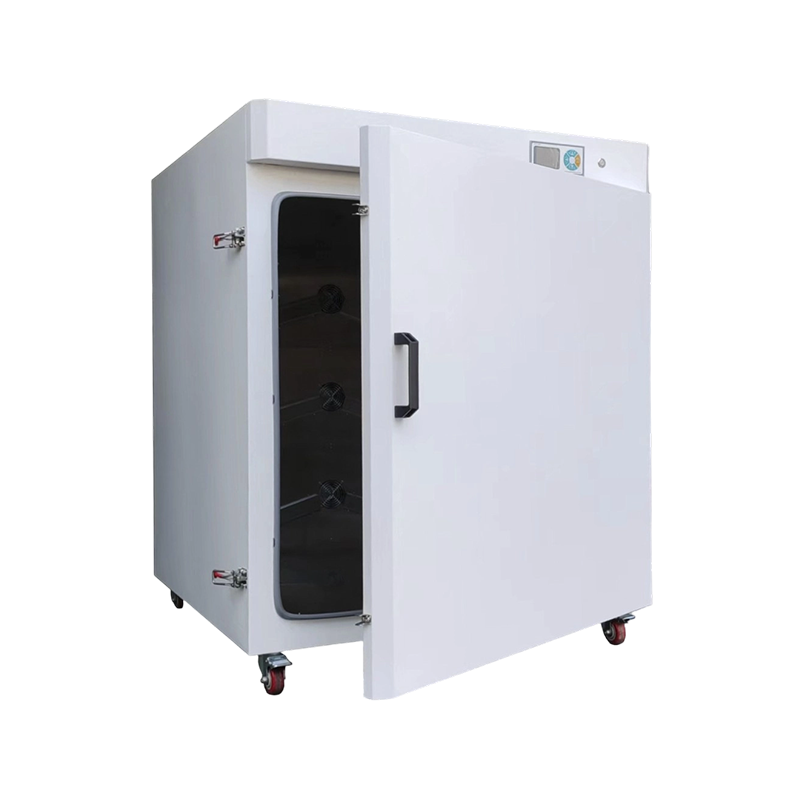

11. Incorporates multi-tiered adjustable shelves, with freely positionable dividers for optimal internal space utilisation;

12. Door seal employs high-temperature resistant silicone rubber, supplemented by premium 120-count ultra-fine ceramic fibre insulation, significantly enhancing overall thermal retention for superior energy efficiency;

13. Self-sealing door lock mechanism achieves secure closure and locking in a single action, offering effortless operation with excellent sealing integrity;

Model		DS-4035L	DS-4075L	DS-4145L	DS-4245L	DS-4425L DS-4645L		DS-4965L	DS-41005L
Temperature Range		RT+10～300℃
Temperature Resolution		0.1℃
Temperature Fluctuation		≤1℃
Temperature Uniformity		±1.5°C (measured at 100°C)
Air Exchange Rate		1 to 40 times per hour				1 to 55 times per hour
Air Vent Diameter		32mm				55 minutes
Ageing Time		1～9999min
Controller		4.3-inch triple-row digital LCD display (set temperature, operating temperature, constant temperature duration)
Temperature Control Method		Microprocessor-controlled intelligent PID calculation
Thermocouple		PT100 platinum resistance thermometer
Cycling Method		Forced air circulation
Operating Mode		Timed operation/Constant-value operation
Additional Functions		Power failure memory, Sensor self-test, Over-temperature alarm, Rapid fuse protection
Power Supply Voltage		AC220V/10A			220V/15A	220V/20A	380V/15A	380V/18A	380V/25A
Inner liner Dimensions mm	Width	300	400	450	500	600	800	1000	1000
	Depth	300	420	550	600	550	800	600	1000
	Height	345	445	550	750	1300	1000	1600	1000
Outer dimensions mm	Width	445	545	640	680	780	980	1140	1140
	Depth	470	580	710	800	750	980	780	1180
	Height	700	800	900	1200	1740	1490	1990	1390
Capacity		31L	75L	136L	225L	429L	640L	960L	1000L
Gross/Net Weight (kg)		39/27	59/47	87/75	110/95	175/160	252/230	293/255	294/255
Standard Shelves		2				3
Rated Power		0.85KW	1KW	1.5KW	2KW	3KW	4.5KW	6KW	7.5KW

1. GB/T 3512-1983 Method for Thermal Air Ageing of Rubber

2. GB/T 3512-2001 Accelerated Thermal Air Ageing and Heat Resistance Test for Vulcanised Rubber or Thermoplastic Rubber

3. JB/T 7444-94 Air Thermal Ageing Test Chamber

4. Reference 1: GB/T 528-2009 Determination of Tensile Stress-Strain Properties of Vulcanised Rubber or Thermoplastic Rubber

1. Power-on self-test
2. Over-temperature alarm
3. Earth leakage circuit breaker
4. Fast-acting fuse
5. Earth leakage protection

1. Intelligent Programmable Controller (30 segments)
2. Independent Temperature Limiter (mechanical)
3. Layered Timer
4. Embedded Printer
5. USB Interface
6. Test Port 25mm/50mm
