Thermal Shock Test Chamber

Thermal shock test chambers, also known as high-low temperature shock test chambers or temperature shock test chambers, are categorised structurally into two-chamber and three-chamber configurations. Primarily employed across aerospace, automotive manufacturing, naval armaments, electronics, electrical engineering, and instrumentation industries, these chambers subject materials and components used in these sectors to temperature variation testing, Thermal shock testing and alternating high-low temperature impact testing assess the tolerance of metals, plastics, rubber, electronics, new materials, and composites to consecutive exposure to extreme high and low temperatures within the shortest possible timeframe. This evaluates the chemical alterations or physical damage incurred by specimens due to thermal expansion and contraction.

PREV：Xenon Lamp Weathering Test Chamber
NEXT：High and Low Temperature Humidity Cycling Test Chamber

Product Introduction
Selection Table
Industry Standards
Safety Protection
Optional Accessories

1. Imported from South Korea, the TEMI8226 colour touchscreen display shows set parameters, test curves, operating time, and heater status, alongside measured and set values. It supports USB data export for records and operational curve extraction.

2. The refrigeration core employs a dual-stage cascade air-cooled system comprising two imported 2×6HP IFC Tecumseh hermetically sealed compressors. All circulation fans utilise imported brands (EBM 4E-300-Z), with environmentally sound refrigerants (R23/R404) employed;

3. Employs novel PWM cold control technology for energy-efficient low-temperature operation. During sub-zero conditions, the heater remains inactive. PWM technology regulates refrigerant flow rate and direction within the refrigeration unit, adjusting three-way flow through the refrigeration line, cold bypass line, and hot bypass line to automatically maintain constant chamber temperature, reducing energy consumption by 40%;

4. Imported low-noise forced-air fans with unique duct design ensure uniform air distribution within the chamber, guaranteeing temperature homogeneity. The refrigeration system employs a classic configuration proven stable through years of market testing, delivering safety and reliability;

5. Supports remote network control operation (Ethernet, optional). Enables effortless remote control, programme setting, parameter viewing, and fault troubleshooting;

6. The control system incorporates comprehensive self-diagnostic functions, automatically performing self-checks upon startup while displaying current equipment status and alerts;

7. Single-screen display of set parameters, current programme number, elapsed/remaining time, heater/humidifier operational status, and remaining cycle count. Capable of visualising programme curves, switching freely between fixed-value and programmed control modes, and language selection (Chinese/English). Performs automatic fault detection, display, and alarm activation.

8. Scheduled start/stop functionality. Preserves data curves during power outages following programmed completion.

9. Comprehensive communication system enabling real-time experimental curve analysis, with RS232/USB (select one) data storage and export connectivity;

10. Automatic return of test specimens to ambient temperature upon test completion to prevent frost/condensation formation;

11. Servo refrigerant flow control technology achieving over 30% energy savings;

12. Automatic parameter saving during emergencies with power-restoration capability, alongside sensor self-diagnosis, over-temperature, and fault alarm functions;

13. Inner chamber constructed from 304 brushed stainless steel; outer casing from premium cold-rolled steel plate with electrostatic powder coating for durable, anti-static finish.

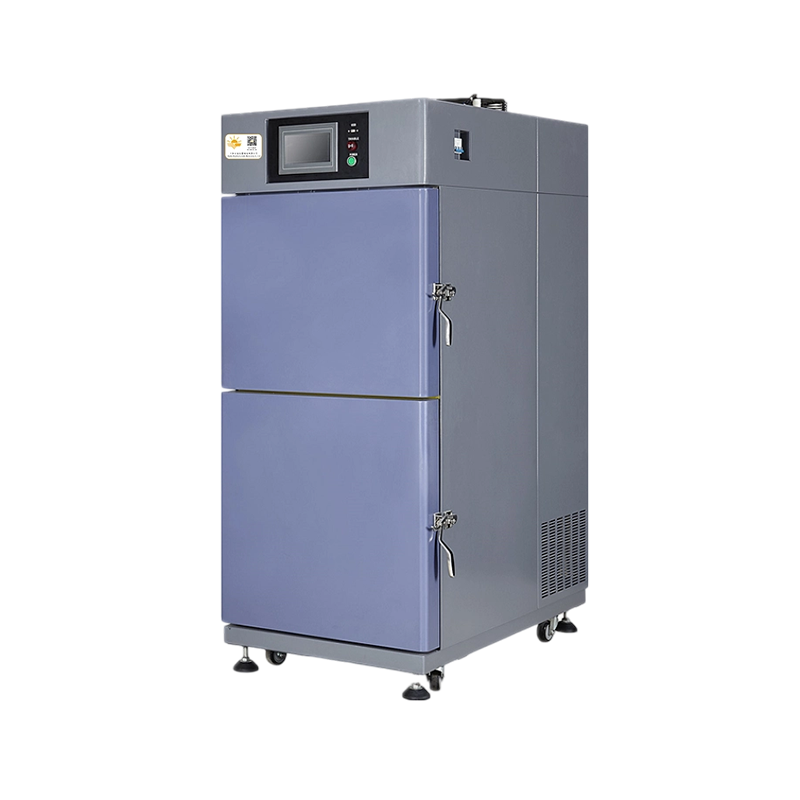

Dual-chamber thermal shock test chamber

Model	MITS-50SA/SB	MITS-80SA/SB	MHTS-100SA/SB	MITS-150SA/SB
Temperature shock range	SA:-40~150 ℃ SB:-60~150℃
Fluctuation	±0.5℃
Uniformity	±2℃
Pre-cooling	SA:RT"-40℃/40min SB:RT"-60℃/50min
Pre-heating	RT"200℃/60min
Temperature conversion method	Basket transfer between hot and cold chambers
Conversion time	10 seconds
Recovery time	3 minutes
Controller	7-inch touchscreen controller
Compressor	Imported hermetically sealed compressor unit, cascade refrigeration system
Refrigerant	Fluorocarbon-free and environmentally friendly
Power supply voltage	AC380V/32/50A	AC380V/50A	AC380V/50/60A	AC380V/60A
Casing material	Cold-rolled steel plate with powder coating (customisable 304 brushed stainless steel)
Insulation layer	Polyurethane foam with glass fibre wool
Inner liner material	SUS304 stainless steel
Door seal	Double-sealed (premium silicone gasket customised for high/low temperature resistance and anti-ageing)
Safety features	Overload, overcurrent, leakage, grounding, electric shock protection* Over-temperature alarm* Compressor overload, overpressure, over-temperature protection
Standard accessories	Inspection window, window light (illuminated anti-fog), test port, fuse
Optional accessories	Printer, tri-colour indicator light, USB port, independent temperature limiter controller
Basket dimensions		250x200x200	250x200x200	350x250z200
Inner liner dimensions (m)	400x350:350	500x400x400	500x500x400	600x500x500
Overall dimensions (m)	150015702000	1800z1580x2200	1850z1600x2300	1980x1800x2400
Power consumption	12/15KW	15/16.5KY	16.5/18KY	18/20KW
Operating environment	Temperature: 15–35°C Humidity: ≤85%

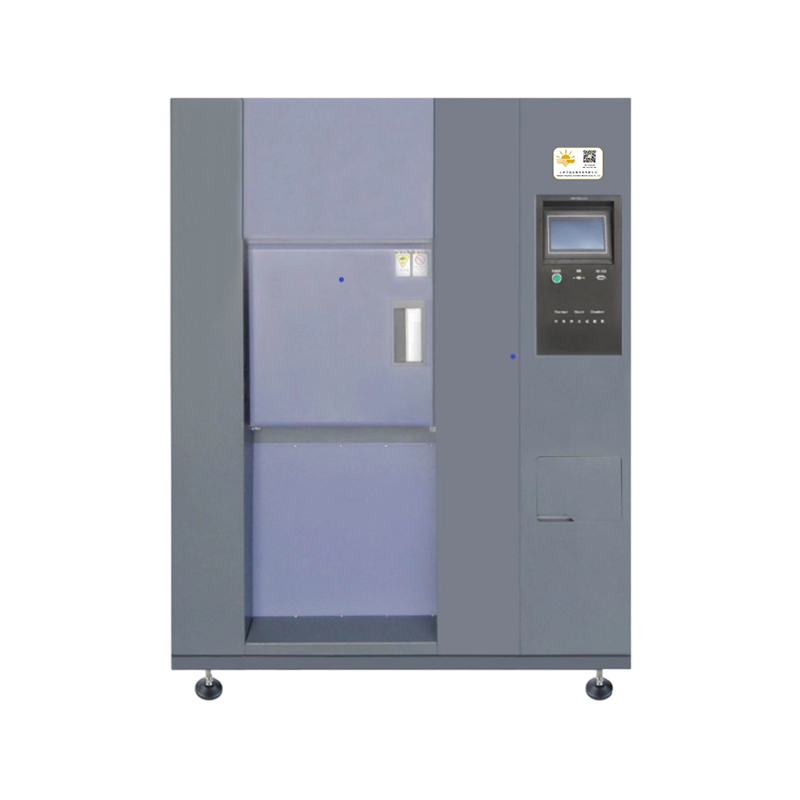

Three-chamber thermal shock test chamber

Model	IHTS-50XA/XB	IHTS-80XA/XB	IHTS-100 XA/XB	IHTS-150 XA/XB
Temperature shock range	IA:-40～150℃ KB:-60～150℃
Fluctuation	±0.5℃
Uniformity	±2℃
Pre-cooling	XA:RT~-40℃/40min XB:RT"-60℃/50min
Pre-heating	RT"200℃/60min
Temperature conversion method	Electric Door Cold/Hot Chamber Switching
Conversion time	10S
Recovery time	3min
Controller	7-inch Angled Touchscreen Controller
Compressor	Imported Fully Enclosed Compressor Unit, Cascade Refrigeration System
Refrigerant	Fluorocarbon-Free and Environmentally Friendly
Power supply voltage	AC380V/32/50A	AC380V/50A	AC380V/50/60A	AC380V/60A
Casing material	Cold-rolled steel plate with powder coating (customisable 304 brushed stainless steel)
Insulation layer	Polyurethane foam with glass fibre wadding
Inner liner material	SUS304 stainless steel
Door seal	Double-sealed (premium silicone gasket customised for high/low temperature resistance and anti-ageing)
Safety features	Overload, overcurrent, leakage, grounding, electric shock protection* Over-temperature alarm* Compressor overload, overpressure, over-temperature protection
Standard accessories	Inspection window, window light (illuminated anti-fog), test port, fuse
Optional accessories	Printer, tri-colour indicator light, USB port, independent temperature limiter controller
Inner liner dimensions (m)	400350350	500π400x400	500x400x500	600x500x500
Overall dimensions (m)	130015701800	1600x1580x2000	1650x1600z2100	1780x1800x2200
Power consumption	12/15KW	15/16.5KW	16.5/18KW	18/20KW
Operating environment	Temperature: 15–35°C Humidity: ≤85%

1. GB/T 10589-2008 Technical Specifications for Low-Temperature Test Chambers

2. GB/T 10592-2023 Technical Specifications for High-Low Temperature Test Chambers

3. GB/T 5170.1-2008 General Principles for Inspection Methods of Environmental Test Equipment for Electrical and Electronic Products

4. GB/T 5170.2-2017 Inspection Methods for Environmental Testing Equipment - Part 2: Temperature Testing Equipment

5. GB/T 2423.1-2008 Environmental Testing of Electrical and Electronic Products - Part 2: Test Methods - Test A: Low Temperature

6. GB/T 2423.1-2008 Environmental Testing of Electrical and Electronic Products - Part 2: Test Methods - Test B: High Temperature

7. GJB 150.3A-2009 Laboratory Environmental Test Methods for Military Equipment Part 3: High Temperature Test

8. GJB 150.4A-2009 Laboratory Environmental Test Methods for Military Equipment Part 3: Low Temperature Test

9. GJB 150.5A-2009 Laboratory Environmental Test Methods for Military Equipment Part 5: Temperature Shock Test

1. Over-temperature alarm
2. Over-pressure protection
3. Overload protection
4. Heater short-circuit and overload protection
5. Earth leakage protection
6. Phase loss protection
