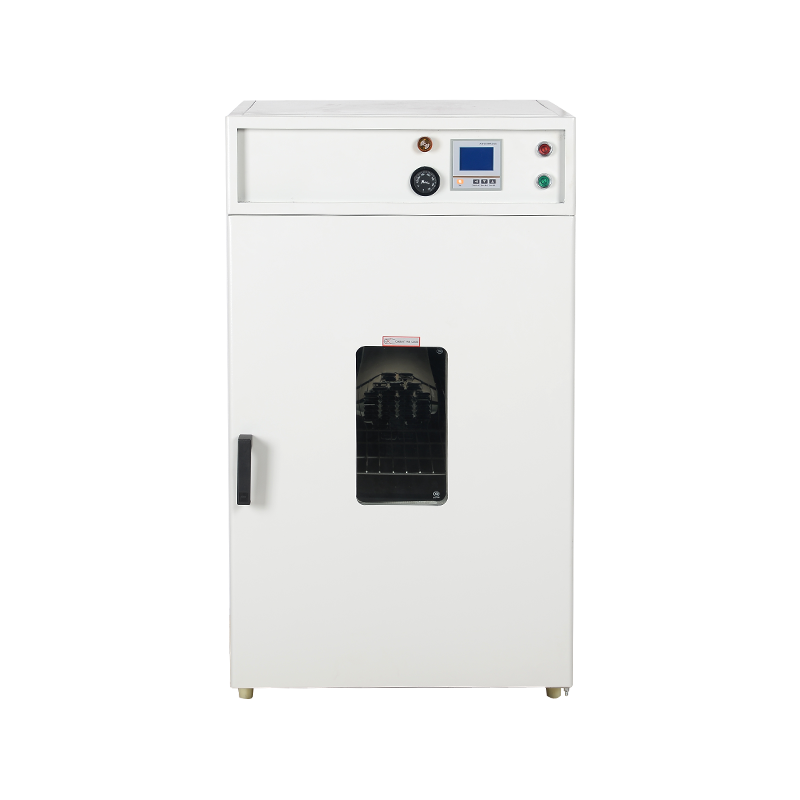

Precise Temperature Control Precision Drying Oven

Adopts a microcomputer-integrated intelligent temperature control system with a built-in PID logic module, possessing constant current, constant pressure, constant resistance, constant power, and combined load functions, achieving excellent response speed and control accuracy;

LCD screen display interface, providing precise and reliable temperature control, simultaneously displaying set temperature, operating temperature, constant temperature time, working status, fault codes, and other information;

Features a scheduled operation function with selectable timing options (no timing, constant temperature timing, running timing), selectable forward or countdown direction, and selectable timing unit (minutes, hours). A buzzer sounds upon completion of the timing period;

Modular control system with self-diagnosis upon startup, timing function, self-tuning function, temperature deviation compensation function, etc. A temperature over-limit control module is linked with the over-temperature alarm system, automatically cutting off the heating power and triggering an audible and visual alarm when the temperature exceeds the limit;

A self-developed air duct structure, supplemented by a low-noise circulating fan, forms a highly efficient hot air circulation system. The horizontal airflow mode greatly improves the temperature uniformity of the working chamber; dry hot air directly passes through... The material is effectively dried, significantly improving drying efficiency.

* Rear-mounted automatic air inlet and outlet vents automatically release water vapor from the chamber, eliminating the need for manual adjustment.

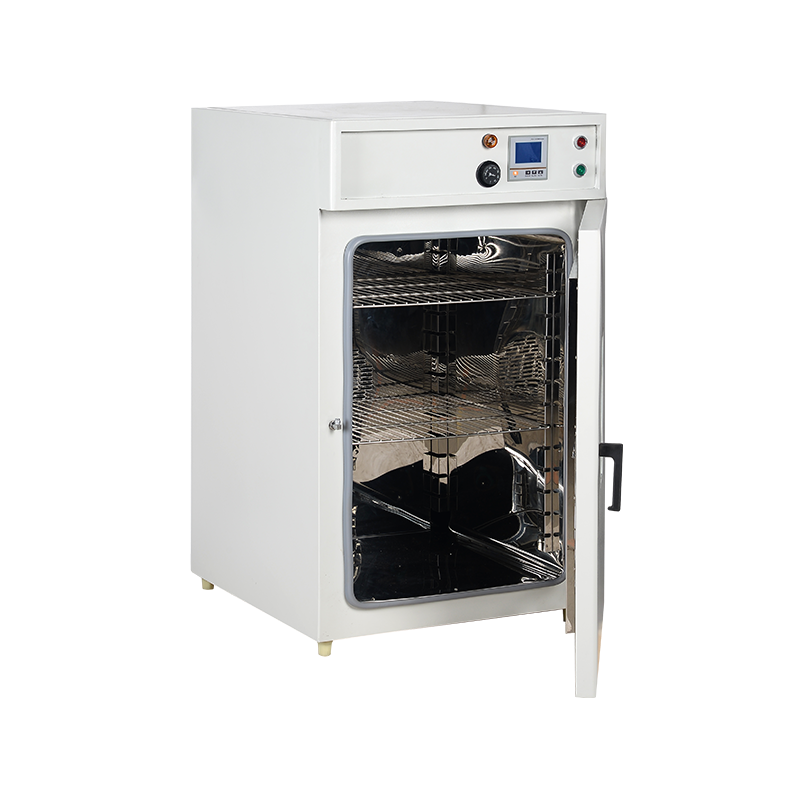

* High-quality mirror-finish stainless steel inner liner and outer shell made of high-quality cold-rolled steel plate with solid powder electrostatic spraying, providing weather resistance, corrosion resistance, and anti-static properties. No VOCs are emitted, ensuring a healthy laboratory environment.
* SUS304 dry-type stainless steel heating tubes provide heating; heat is evenly transferred to the stainless steel tube wall through a magnesium oxide sand layer, achieving a heat conversion efficiency of over 95% and a service life of over 20,000 hours. The door seal uses high-temperature resistant silicone rubber material, supplemented with high-quality 120-count ultra-fine ceramic fiber cotton insulation material, greatly improving the overall insulation performance and achieving excellent energy-saving effects.

It supports operation data recording function, with freely adjustable recording intervals and data export (optional accessory: USB interface).

It supports custom 30-segment temperature curves to meet complex experimental needs (optional accessory: 30-segment programmable controller).

It supports stepless fan speed adjustment to adapt to heat treatment operations of various materials (optional accessory: fan speed controller).
