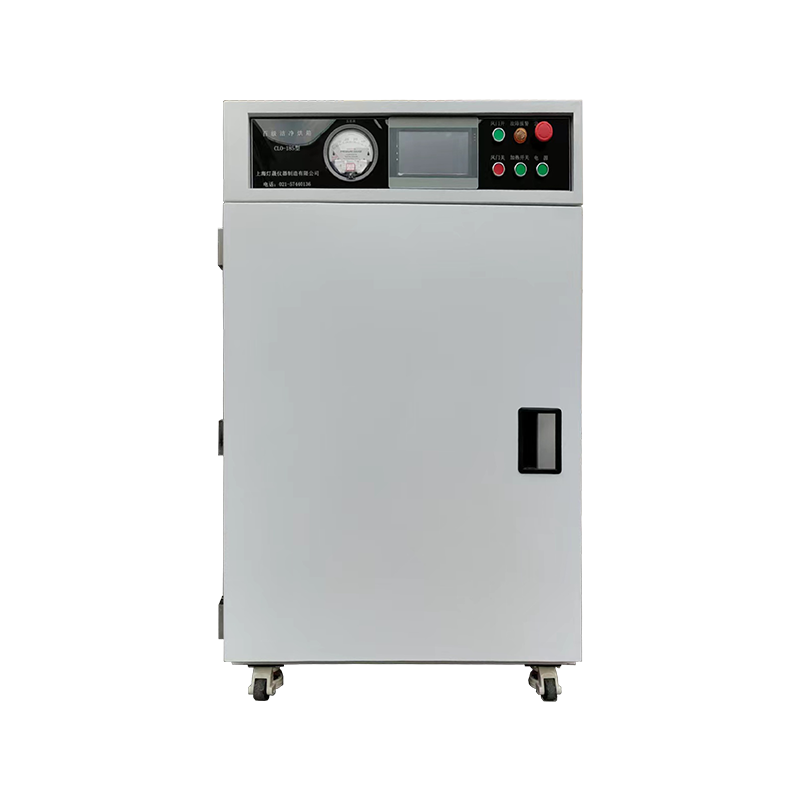

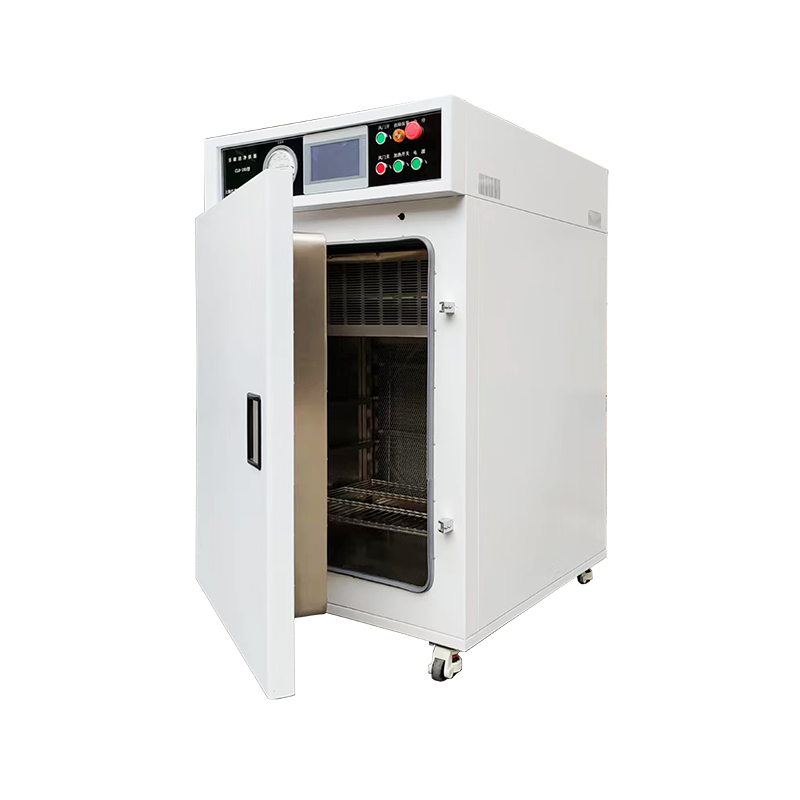

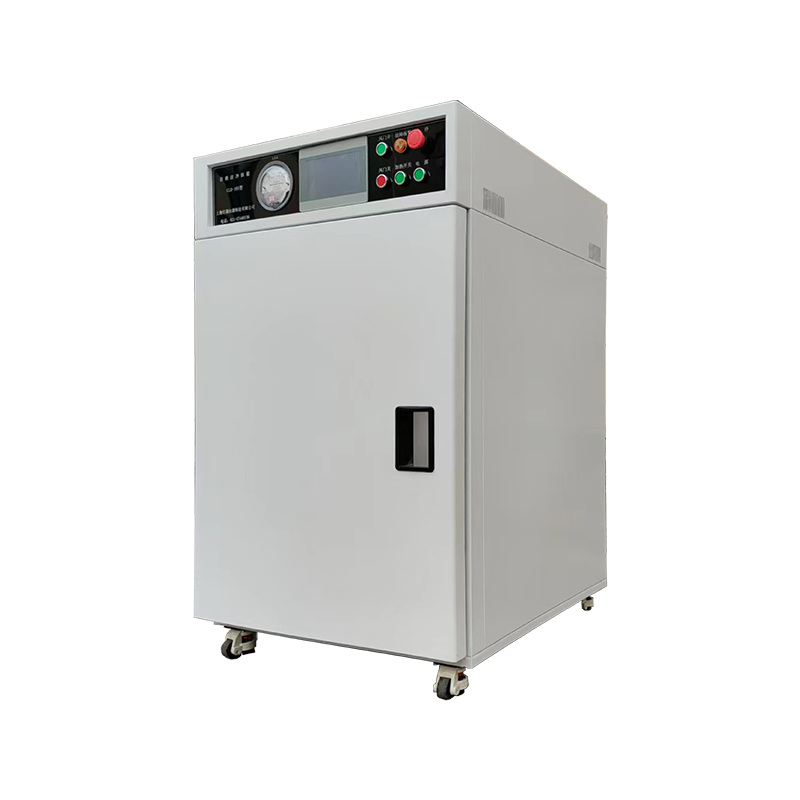

Anti-Static Function Class 100 Clean Drying Oven

7-inch touchscreen temperature controller with built-in PID self-tuning module, slope setting function, precise and reliable temperature control; integrated GMP audit trail function, supports 20,000 sets of data storage and FDA 21 CFR Part 11 electronic signature;
High-temperature resistant HEPA high-efficiency filter EN 1822 standard H14 grade, filtration efficiency for 0.3μm particles ≥99.995%;

The equipment features phase loss detection, self-diagnosis, leakage protection, fan overheat protection, independent temperature limit alarm, automatic parameter saving in case of emergencies, power recovery, sensor self-diagnosis, over-temperature and fault alarm functions;

Equipped with triple protection of mechanical fuse + electronic temperature limit + independent alarm module to ensure safe and reliable operation;

Can be equipped with a high-temperature oxygen content controller, zirconia oxygen content sensor, and a high-temperature self-priming pump, which can detect oxygen content in real time and display the actual value, and is equipped with an oxygen content over-limit alarm function (optional);

Internal circumferential argon welding, high-temperature silicone sealing strip, mechanical forced sealing, 316L stainless steel electric heating element, dust-free for long-term high-temperature use;

Insulation material uses 120K grade high-density ceramic fiber artificial filling, with excellent insulation performance;

4.3-inch four-channel temperature recorder, displaying four real-time temperatures simultaneously on the same screen. Features include: a curve mode with real-time recording and storage; records can be quickly exported via USB flash drive for easy tracking of historical temperature data (optional);

Fully automatic damper design:** Automatic opening and closing to exhaust gases, eliminating the need for manual operation;

Electromagnetic access control system:** Automatically locks during operation and automatically releases upon program termination, significantly improving test safety;

Inner chamber:** Made of 316 stainless steel; outer shell: Made of high-quality cold-rolled steel plate with electrostatic coating for a durable and colorfast finish;

Reinforced support between inner and outer chambers:** Enhances internal load-bearing capacity, ≥200KG;

Outer shell:** Made of 1.5mm thick SS41# cold-rolled steel plate, treated with pickling and phosphating for rust prevention, followed by electrostatic powder coating for a durable and aesthetically pleasing finish;

High-strength, movable casters:** Easily move equipment; quick-release support plate for secure mounting;

Real-time oxygen content monitoring via zirconium oxygen analyzer (optional)**
