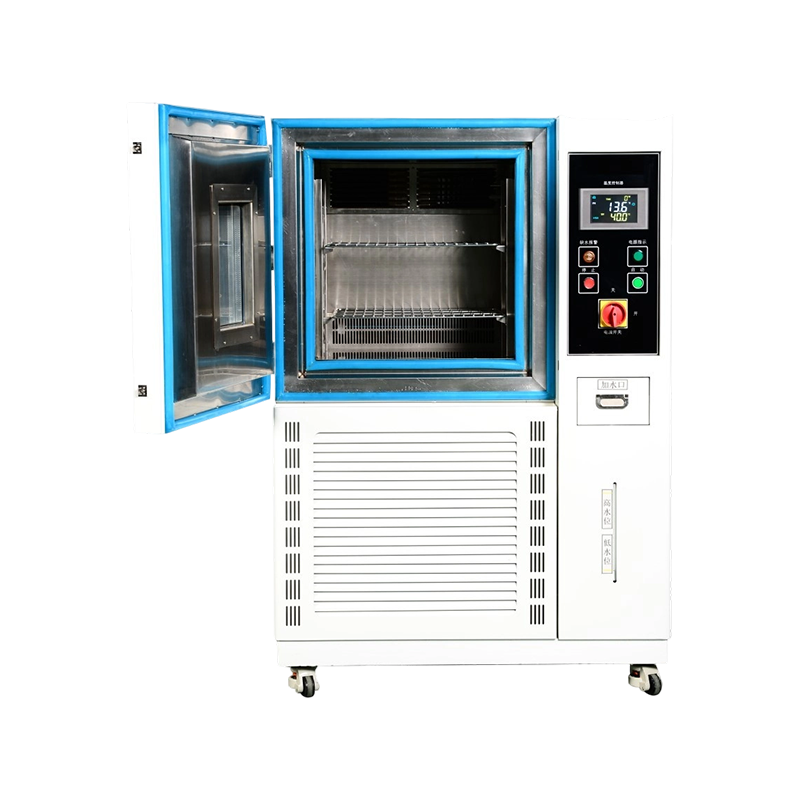

Explosion-Proof High And Low Temperature Humidity Test Chamber

1. The product complies with IIB explosion-proof standards and is suitable for hazardous locations with explosive gas mixtures in temperature classes T1 to T4. It achieves an explosion-proof rating of IIB T4. The product has been certified as compliant by the ****** Electrical Safety Quality Inspection and Testing Centre and holds a valid ********* explosion-proof certification;

2. The electrical control system employs a composite explosion-proof technology combining flameproof and encapsulated designs. The operating switch is a passive switch that generates no mechanical sparks during operation, ensuring safe and reliable use. Sensors are equipped with external safety barriers for explosion-proof isolation;

3. The explosion-proof digital temperature controller features a menu-driven interface with a 7-inch touchscreen. It includes a standard auto-lock screen function to prevent accidental operation; A single screen displays set temperature, operating temperature, constant temperature duration, heating status, and other information, ensuring straightforward operation. The microprocessor-based PID control system delivers precise temperature regulation with minimal fluctuation;

4. The intelligent microprocessor temperature and humidity control system incorporates PID logic operations. Based on computational results, it automatically corrects temperature and humidity deviations to achieve precise control;

5. Incorporates a scheduled start function with multiple timing modes: forward countdown, reverse countdown, constant temperature timing, and start-up timing. Timing units are selectable in minutes or hours;

6. Core components (refrigeration cycle) utilise imported brand compressors and circulation fans. The compressor employs cast-sealed explosion-proof technology for safety and reliability. Utilises fluorine-free, environmentally friendly refrigerant to foster a healthy laboratory environment;

7. The internal air circulation system employs a high-temperature resistant, low-noise explosion-proof axial fan for forced circulation. The refrigeration system utilises a classic arrangement proven stable through years of market testing, ensuring safety and reliability;

8. Incorporates the internationally favoured internal humidification method, offering superior temperature and humidity stability compared to external humidification. Features internationally renowned explosion-proof humidity sensors achieving precision at advanced global standards; includes real-time water tank level monitoring with automatic replenishment functionality;

9. Automatic parameter saving during emergencies with power-on recovery functionality. Equipped with sensor self-diagnostics, over-temperature, and fault alarm capabilities;

10. Inner chamber constructed from 304 mirror-finish stainless steel with rounded corner design. Outer casing utilises premium cold-rolled steel plate with electrostatic powder coating for durable, anti-static finish;

11. Magnetic seal door for effortless opening and superior sealing; adjustable shelves optimise space utilisation;

12. Ergonomic design incorporates a standard 50mm diameter test port for external power or signal cables.
